HYPER DAT экскаватора гусеничного Hyundai R450LC-3(-#1000)

Код подсистемы:7040

Наименование:HYPER DAT

Версия:'96.12.20 REV.3

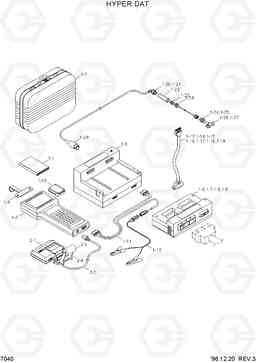

HYPER DAT R450LC-3(-#1000)

Поз.	Код	Наименование	Кол	Прим.
*	@	HYPER DAT	1
1	21E6-90200	HYPER DAT KIT	1
1-1	21E2-90030	USER'S GUIDE(ENGLISH)	1
1-10	21E2-90180	ROM PACK	1
1-11	21E2-90200	MAIN CABLE	1
1-12	21E2-90210	BATT-CIGAR CABLE	1
1-13	21E2-90220	CONTROLLER CABLE 1	1
1-14	21E2-90230	CONTROLLER CABLE 2	1
1-15	21E2-90240	CONTROLLER CABLE 3	1
1-16	21E2-90250	CONTROLLER CABLE 4	1
1-17	21E2-90260	CONTROLLER CABLE 5	1
1-18	21E2-90270	CONTROLLER CABLE 6	1
1-19	21E2-90280	CONTROLLER CABLE 7	1
1-2	21E2-90040	CASE	1
1-20	21E2-90300	PRESSURE TRANSDUCER 1	1
1-21	21E2-90310	PRESSURE TRANSDUCER 2	2
1-22	21E2-90320	TRANSDUCER ADAPTER	3
1-23	21E2-90330	SCREW COUPLING 1	6
1-24	21E2-90340	SCREW COUPLING 2	3
1-25	21E2-90350	SCREW COUPLING 3	1
1-26	21E2-90360	T-FITTING 1	1
1-27	21E2-90370	T-FITTING 2	1
1-28	21E2-90380	PRESSURE CABLE	3
1-29	21E2-90390	TRANSDUCER CABLE	3
1-3	21E2-90050	MAIN BODY HANGER	1
1-4	21E2-90110	MAIN BODY	1
1-5	21E2-90120	MODULAR	1
1-6	21E2-90130	SIGNAL ADAPTER 1	1
1-7	21E2-90140	SIGNAL ADAPTER 2	1
1-8	21E2-90150	SIGNAL ADAPTER 3	1
1-9	21E2-90160	SIGNAL ADAPTER 4	1
2	21E6-90400	PRINTER-HYPER DAT KIT	1
2-1	21E2-90400	PRINTER	1
2-2	21E2-90410	PRINTER CABLE	1
2-3	21E2-90420	PAPER-PRINTER	1
2-4	21E2-90430	PAPER HANGER-PRINTER	1
