DECALS(R450-3) экскаватора гусеничного Hyundai R450LC-3(#1001-)
DECALS(R450-3) экскаватора гусеничного Hyundai R450LC-3(#1001-) со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7021
Наименование:DECALS(R450-3)
Версия:2001. 5.10 REV.9

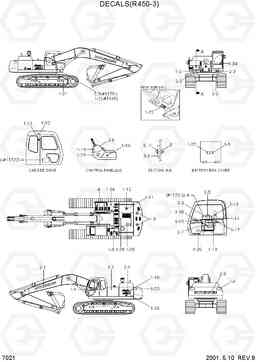

DECALS(R450-3) R450LC-3(#1001-)
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 94E7-00133 | DECAL KIT(A) | 1 | ||
| 1 | 94E7-00135 | DECAL KIT(A) | 1 | ||
| 1 | 94E7-00136 | DECAL KIT(A) | 1 | ||
| 1 | 94E7-00137 | DECAL KIT(A) | 1 | ||
| 1 | 94E7-00138 | DECAL KIT(A) | 1 | ||
| 1-1 | 91E1-21210 | TRADE MARK-CAB | 1 | ||
| 1-10 | 91E1-26020 | AIR CLEANER | 1 | ||
| 1-11 | 91E1-26030 | Крышка радиатора | 1 | ||
| 1-12 | 91E1-26040 | ANTIFREEZE | 1 | ||
| 1-13 | 91E1-28020 | AIR VENT | 1 | ||
| 1-14 | 91E1-28031 | INTERFERENCE | 1 | ||
| 1-15 | 91E1-28051 | SAFETY INSTRUCTION | 1 | ||
| 1-17 | 91E1-28070 | SWING LOCK | 1 | ||
| 1-18 | 91E1-28081 | MAX HEIGHT REACH | 1 | ||
| 1-19 | 91E1-29060 | SAFETY IDEOGRAM | 1 | ||
| 1-2 | 91E1-14110 | NAME PLATE | 1 | ||
| 1-20 | 91E1-28960 | SWING IDEOGRAM | 1 | ||
| 1-21 | 91E1-29080 | SLINGING IDEOGRAM | 4 | ||
| 1-22 | 94E7-00500 | GREASE | 1 | ||
| 1-23 | 91E1-24050 | SIDE KEEP CLEAR | 2 | ||
| 1-23 | 91E1-24051 | SIDE KEEP CLEAR | 2 | ||
| 1-24 | 91E1-25511 | FUELING | 1 | ||
| 1-25 | 91E1-26051 | DECAL-EXHAUST | 1 | ||
| 1-26 | 91E1-26060 | STAY-FIX | 2 | ||
| 1-27 | 91E1-26070 | BATTERY-DECAL | 1 | ||
| 1-28 | 91E1-26090 | MARK-HOOD | 1 | ||
| 1-29 | 91E1-28111 | SAFETY LEVER | 1 | ||
| 1-29 | 91E1-28112 | SAFETY LEVER | 1 | ||
| 1-3 | 91E1-24021 | TRANSPORTING | 1 | ||
| 1-31 | 91E1-28220 | LOGO-FIRE | 1 | ||
| 1-32 | 91E1-28230 | LOGO-HAMMER | 1 | ||
| 1-34 | 91E1-28280 | SAFE-FRONT WINDOW | 1 | ||
| 1-35 | 91E1-28290 | SERVICE SOCKET | 1 | ||
| 1-36 | 91E1-28310 | LATCH-DECAL | 1 | ||
| 1-4 | 91E1-24041 | KEEP CLEAR | 2 | ||
| 1-4 | 91E1-24042 | KEEP CLEAR | 2 | ||
| 1-5 | 91E1-24520 | LIFTING EYE | 2 | ||
| 1-7 | 94E7-00140 | HYD OIL LEVEL | 1 | ||
| 1-7 | 91E1-25012 | HYD OIL LEVEL | 1 | ||
| 1-8 | 91E1-25020 | HYD OIL LUB | 1 | ||
| 1-9 | 91E1-26010 | ELECTROLYTE | 1 | ||
| 2 | 94E7-00430 | DECAL KIT(B) | 1 | ||
| 2 | 94E7-00431 | DECAL KIT(B) | 1 | ||
| 2 | 94E7-00432 | DECAL KIT(B) | 1 | ||
| 2 | 94E7-00470 | DECAL KIT(B) | 1 |
LOW NOISE
|
|
| 2 | 94E7-00471 | DECAL KIT(B) | 1 |
LOW NOISE
|
|
| 2 | 94E7-00472 | DECAL KIT(B) | 1 |
LOW NOISE
|
|
| 2-1 | 91E1-21140 | TRADE MARK-B/CWT | 2 | ||
| 2-1 | 91E1-21140 | TRADE MARK-B/CWT | 2 | ||
| 2-2 | 91E1-23150 | NOISE LEVEL-LPA | 1 | ||
| 2-2 | 91E1-23110 | NOISE LEVEL-LPA | 1 | ||
| 2-3 | 91E1-23670 | NOISE LEVEL-LWA | 1 | ||
| 2-3 | 91E1-23670 | NOISE LEVEL-LWA | 1 | ||
| 2-4 | 94E7-00440 | SERVICE INSTRUCTION | 1 | ||
| 2-4 | 94E7-00441 | SERVICE INSTRUCTION | 1 | ||
| 2-4 | 94E7-00440 | SERVICE INSTRUCTION | 1 | ||
| 2-4 | 94E7-00441 | SERVICE INSTRUCTION | 1 | ||
| 2-5 | 91E6-29021 | CONTROL IDEOGRAM | 1 | ||
| 2-5 | 91E6-29021 | CONTROL IDEOGRAM | 1 | ||
| 2-6 | 91E6-29041 | CONTROL IDEOGRAM-LH | 1 | ||
| 2-6 | 91E6-29041 | CONTROL IDEOGRAM-LH | 1 | ||
| 2-7 | 91E1-29052 | CONTROL IDEOGRAM-RH | 1 | ||
| 2-7 | 91E1-29052 | CONTROL IDEOGRAM-RH | 1 | ||
| 2-8 | 91E1-21120 | TRADE MARK-CWT | 1 | ||
| 2-8 | 91E1-21120 | TRADE MARK-CWT | 1 | ||
| 3 | 94E7-00161 | DECAL KIT(C) | 1 | ||
| 3-1 | 94E7-00110 | MODEL NAME | 2 | ||
| 3-2 | 94E7-00120 | NUMBER PLATE | 1 | ||
| 3-3 | 94E7-00290 | LIFTING CHART | 1 | ||
| 3-3-1 | 94E7-00230 | LIFTING CHART | 1 |
3.38AM
|
|
| 3-3-2 | 94E7-00240 | LIFTING CHART | 1 |
2.40AM
|
|
| 3-3-3 | 94E7-00250 | LIFTING CHART | 1 |
2.90AM
|
|
| 3-3-4 | 94E7-00260 | LIFTING CHART | 1 |
4.00AM
|
|
| 3-3-5 | 94E7-00270 | LIFTING CHART | 1 |
4.50AM
|
|
| 3-3-6 | 94E7-00280 | LIFTING CHART | 1 |
2.40AM
|
|
| 4 | 91E1-26300 | Наклейка шаг протектора | 20 | ||
| 5 | 91EK-12010 | RIVET | 4 | ||
| 6 | S175-080202 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 7 | S403-082002 | Плоская шайба | 2 | ||
| 8 | S205-081002 | Гайка | 2 | ||
| 9 | 91E1-14110 | NAME PLATE | 1 |
STD
|
|
| 9 | 91E1-14130 | NAME PLATE | 1 |
EUROPE
|
