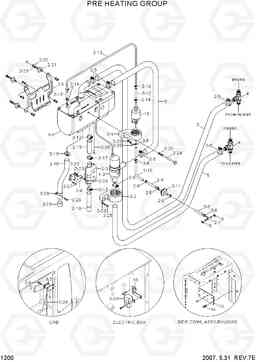

PRE HEATING GROUP экскаватора гусеничного Hyundai R500LC-7A

Код подсистемы:1200

Наименование:PRE HEATING GROUP

Версия:2007. 5.31 REV.7E

PRE HEATING GROUP R500LC-7A

Поз.	Код	Наименование	Кол	Прим.
*	@	PRE HEATING GROUP	1
1	11N8-90500	HYDRONIC D5WS-24V	1
1-3	11N8-94120	PUMP-COOLANT	1
10	11N8-94270	BRACKET-F/BOX	1
11	S131-043046	SCREW-W/WASHER	1
12	21E9-06230	CLAMP-QUICK	2
13	11N8-94290	Кронштейн	1
14	S037-101552	Болт	4
15	11N8-94110	PUMP-FUEL	1
2	11N8-90510	UNIVERSAL KIT D5WS-24V	1
2-1	11N8-94130	CLAMP-RUBBER	1
2-10	@	HOSE-PLASTIC	1
2-11	11N8-94190	Фильтр топливный	1
2-12	@	HOSE	2
2-13	@	HOSE-PLASTIC	1
2-14	@	CLAMP-HOSE	4
2-15	@	HOSE-EXHAUST	1
2-16	@	HOSE-EXHAUST	1
2-17	@	CLAMP-EXHAST	3
2-18	@	HOSE-INTAKE	1
2-19	@	CLAMP-INTAKE	1
2-2	11N8-94140	CLAMP-RUBBER	1
2-20	@	END CAP	1
2-21	@	STUD BOLT	4
2-22	@	NUT	5
2-23	@	WASHER	9
2-24	@	BOLT-HEX	1
2-25	@	BOLT-HEX	2
2-26	@	BOLT-HEX	3
2-27	@	BOLT SCREW	2
2-28	@	CLAMP	1
2-29	11N8-94250	HARNESS-P/HEATER	1
2-3	11N8-94160	MUFFLER	1
2-30	11N8-94260	FUSE BOX-P/HEATER	1
2-4	11N8-94170	BRKT-MUFFLER	1
2-5	@	HOSE-CLAMP	10
2-6	11N8-94150	BRKT-HEATER	1
2-7	11N8-94180	Тройник топлива	1
2-8	@	CLAMP-HOSE	6
2-9	@	HOSE	3
3	11N8-90520	MINI TIMER 12/24V	1
3-1	@	TIMER	1
3-2	@	CUSHION	1
3-3	@	BOLT SCREW	1
3-4	@	CAP	1
4	11N8-94200	TEE	2
5	11N8-94210	Шланг	1
6	11N8-94220	Шланг	1
7	11N8-94230	Шланг сапуна	1
8	S520-020000	Зажим	2
9	11N8-94240	Пластина	1
N1-1	11N8-94100	Предпусковой подогреватель	1
