Каталог запчастей
-
Hyundai
-
R55-3
- DECALS(-#1139)

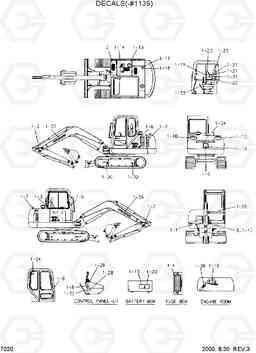

DECALS(-#1139) экскаватора гусеничного Hyundai R55-3
DECALS(-#1139) экскаватора гусеничного Hyundai R55-3 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7020
Наименование:DECALS(-#1139)
Версия:2000. 8.30 REV.3
DECALS(-#1139) R55-3
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 90M6-60011 | DECAL KIT-R55-3 | 1 | ||
| 1 | 90M6-65011 | DECAL KIT-R55-3 | 1 |
BOOM SWING
|
|
| 1-1 | 91M6-60040 | TRANSFORTING-R55-3 | 1 | ||
| 1-10 | 91M6-60130 | KEEP CLEAR | 2 | ||
| 1-11 | 91M6-60140 | LIFTING CHART | 1 | ||
| 1-12 | 91E1-14110 | DECAL-PIN PLATE | 1 | ||
| 1-13 | 91E1-25020 | HYD OIL LUB | 1 | ||
| 1-14 | 91E1-25511 | FUELING | 1 | ||
| 1-15 | 91E1-26010 | ELECTROLYTE | 1 | ||
| 1-16 | 91E1-26020 | AIR CLEANER | 1 | ||
| 1-17 | 91E1-26030 | Крышка радиатора | 1 | ||
| 1-18 | 91E1-26040 | ANTIFREEZE | 1 | ||
| 1-19 | 91E1-26060 | STAY-FIX | 1 | ||
| 1-2 | 91M6-60050 | SAFETY -TRAVEL | 2 | ||
| 1-20 | 91E1-26070 | BATTERY-DECAL | 1 | ||
| 1-21 | 91E1-28020 | DECAL-AIR VENT | 1 | ||
| 1-22 | 91E1-28051 | SAFETY INSTRUCTION | 1 | ||
| 1-23 | 91E1-28081 | MAX HEIGHT REACH | 1 | ||
| 1-24 | 91E1-28220 | LOGO-FIRE | 1 | ||
| 1-25 | 91E1-28230 | LOGO-HAMMER | 1 | ||
| 1-26 | 91E1-28280 | SAFE-FRONT WINDOW | 1 | ||
| 1-27 | 91M6-60150 | SERVICE SOCKET | 1 | ||
| 1-28 | 91E1-28310 | DECAL-LATCH | 1 | ||
| 1-29 | 91E1-29060 | SAFETY IDEOGRAM | 1 | ||
| 1-3 | 91M6-60060 | HYD. OIL LEVEL | 1 | ||
| 1-30 | 91E1-29080 | SLINGING IDEOGRAM | 4 | ||
| 1-31 | 91E6-29021 | CONTROL IDEOGRAM | 1 | ||
| 1-31 | 91M6-60160 | CONTROL IDEOGRAM | 1 |
BOOM SWING
|
|
| 1-32 | 91E6-29041 | CONTROL IDEOGRAM-LH | 1 | ||
| 1-33 | 91E1-29052 | CONTROL IDEOGRAM-RH | 1 | ||
| 1-34 | 91M5-00031 | DECAL-TRADE MARK,CWT | 1 | ||
| 1-35 | 91M5-00040 | TRADE MARK-BOOM | 2 | ||
| 1-36 | 91M6-50070 | Реле | 1 | ||
| 1-4 | 91M6-60070 | FUSE BOX | 1 | ||
| 1-4 | 91M6-60071 | DECAL-FUSE BOX | 1 | ||
| 1-5 | 91M6-60080 | EXHAUST | 1 | ||
| 1-6 | 91M6-60090 | MODEL NAME-R55-3 | 2 | ||
| 1-7 | 91M6-60100 | SIDE KEEP CLEAR | 2 | ||
| 1-8 | 91M6-60110 | SAFETY LEVER | 1 | ||
| 1-9 | 91M6-60120 | SERVICE INSTRUCTION | 1 | ||
| 1-9 | 91M6-60170 | SERVICE INSTRUCTION | 1 |
BOOM SWING
|
|
| 2 | 91E1-26300 | Наклейка шаг протектора | 3 | ||
| 3 | 91EK-12010 | RIVET | 4 |
