CAB INTERIOR 1 экскаватора гусеничного Hyundai R55-7
CAB INTERIOR 1 экскаватора гусеничного Hyundai R55-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6100
Наименование:CAB INTERIOR 1
Версия:2004.12.31 REV.1

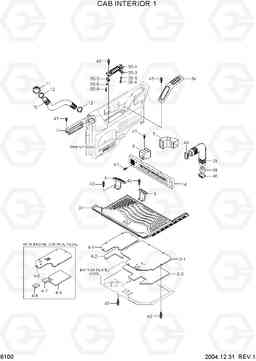

CAB INTERIOR 1 R55-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 10 | 71N6-20210 | Шланг дефростер | 1 | ||
| 11 | 71M8-21030 | NOZZLE-DEF | 1 | ||
| 12 | S520-055000 | Зажим | 2 | ||
| 14 | 71M8-20272 | COVER-SEAT BASE | 1 | ||
| 3 | 71M8-10221 | COVER ASSY-MCV | 1 | ||
| 3-1 | 71M8-10102 | Крышка гидрораспределителя | 1 | ||
| 3-2 | 71M8-10230 | SPONGE | 1 | ||
| 34 | 71M8-20850 | PANEL-RADIO | 1 | ||
| 35 | 71M8-20862 | PANEL-KEY | 1 | ||
| 35-1 | 71M8-21310 | PANEL | 1 | ||
| 35-2 | 71M8-21320 | CONNECTOR(1) | 1 | ||
| 35-3 | 71M8-21330 | CONNECTOR(2) | 1 | ||
| 35-4 | S151-030106 | SCREW-TAPPING | 6 | ||
| 35-5 | S403-032006 | Плоская шайба | 6 | ||
| 37 | 71M8-20940 | MAT-FLOOR | 1 |
2 FOOT REST
|
|
| 37 | 71M8-21200 | MAT-FLOOR | 1 |
1 PEDAL 1 REST
|
|
| 37 | 71M8-21210 | MAT-FLOOR | 1 |
2 PEDAL
|
|
| 37 | 71M8-21220 | MAT-FLOOR | 1 |
1 PEDAL 2 REST
|
|
| 37 | 71M8-21230 | MAT-FLOOR | 1 |
2 PEDAL 1 REST
|
|
| 37 | 71M8-21240 | MAT-FLOOR | 1 |
3 PEDAL
|
|
| 38 | 71N6-20450 | фильтр губка | 2 | ||
| 39 | 71N6-20181 | Трубка | 1 | ||
| 4 | 71M8-10122 | COVER-T/JOINT | 1 |
STD
|
|
| 4 | 71M8-10390 | COVER-T/JOINT | 1 |
E/G CNTL PEDAL
|
|
| 4-1 | 71M8-10241 | Пластина | 1 |
STD
|
|
| 4-2 | 71M8-10251 | SPONGE | 1 |
STD
|
|
| 4-5 | 71M8-10400 | Пластина | 1 |
E/G CNTL PEDAL
|
|
| 4-6 | 71M8-10410 | SPONGE | 1 |
E/G CNTL PEDAL
|
|
| 4-7 | 71M8-10420 | SPONGE | 1 |
E/G CNTL PEDAL
|
|
| 4-8 | 71M8-10430 | SPONGE | 1 |
E/G CNTL PEDAL
|
|
| 40 | S520-115000 | Зажим | 2 | ||
| 42 | S037-102026 | Болт | 16 | ||
| 43 | S037-102526 | Болт | 6 | ||
| 45 | S131-051526 | SCREW-W/WASHER | 8 | ||
| 47 | S132-061526 | SCREW-W/WASHER | 8 | ||
| 5 | 71M8-10280 | FOOT REST ASSY-LH | 1 |
LH
|
|
| 6 | 71M8-10270 | FOOT REST ASSY-RH | 1 |
RH
|
|
| 7 | 71M8-20011 | DUCT-FOOT(RH) | 1 | ||
| 8 | 71M8-20021 | DUCT-FOOT(SEAT LOW) | 1 | ||
| 9 | 71M8-20031 | DUCT-FOOT(REAR) | 1 |
