DECALS(-#0134) экскаватора колесного Hyundai R55W-3
DECALS(-#0134) экскаватора колесного Hyundai R55W-3 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:8020
Наименование:DECALS(-#0134)
Версия:2000. 9.15 REV.1

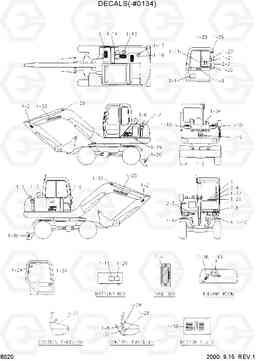

DECALS(-#0134) R55W-3
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 91M6-04001 | DECAL KIT(A)-R55W-3 | 1 | ||
| 1 | 91M6-04002 | DECAL KIT(A)-R55W-3 | 1 | ||
| 1 | 91M6-04003 | DECAL KIT(A)-R55W-3 | 1 | ||
| 1-1 | 91M6-04040 | TRANSPORTING | 1 | ||
| 1-10 | 91M6-60130 | KEEP CLEAR | 2 | ||
| 1-11 | 91M6-04110 | LIFTING CHART-R55W-3 | 1 | ||
| 1-11 | 91M6-04160 | SERVICE INSTRUCTION | 1 | ||
| 1-12 | 91E1-14110 | DECAL-PIN PLATE | 1 | ||
| 1-13 | 91E1-25020 | HYD OIL LUB | 1 | ||
| 1-14 | 91E1-25511 | FUELING | 1 | ||
| 1-15 | 91E1-26010 | ELECTROLYTE | 1 | ||
| 1-15 | 91M6-60390 | DECAL-BATTERY | 1 | ||
| 1-16 | 91E1-26020 | AIR CLEANER | 1 | ||
| 1-17 | 91M6-60210 | Крышка радиатора | 1 | ||
| 1-18 | 91M6-60220 | ANTIFREEZE | 1 | ||
| 1-19 | 91E1-26060 | STAY-FIX | 1 | ||
| 1-2 | 91M6-60050 | SAFETY -TRAVEL | 2 | ||
| 1-2 | 91M6-60051 | SAFETY-TRAVEL | 2 | ||
| 1-20 | 91E1-26070 | BATTERY-DECAL | 1 | ||
| 1-21 | 91E1-28020 | DECAL-AIR VENT | 1 | ||
| 1-22 | 91E1-28051 | SAFETY INSTRUCTION | 1 | ||
| 1-23 | 91E1-28081 | MAX HEIGHT REACH | 1 | ||
| 1-24 | 91E1-28220 | LOGO-FIRE | 1 | ||
| 1-25 | 91E1-28230 | LOGO-HAMMER | 1 | ||
| 1-26 | 91E1-28280 | SAFE-FRONT WINDOW | 1 | ||
| 1-27 | 91M6-60150 | SERVICE SOCKET | 1 | ||
| 1-28 | 91E1-28310 | DECAL-LATCH | 1 | ||
| 1-29 | 91E1-29060 | SAFETY IDEOGRAM | 1 | ||
| 1-3 | 91M6-04090 | HYD OIL LEVEL | 1 | ||
| 1-30 | 91E1-29080 | SLINGING IDEOGRAM | 4 | ||
| 1-31 | 91M6-04070 | CAUTION T/MISSION | 1 | ||
| 1-32 | 91M6-04120 | CONTROL IDEOGRAM-L | 1 | ||
| 1-32 | 91M6-04121 | CONTROL IDEOGRAM-L | 1 | ||
| 1-33 | 91E1-29052 | CONTROL IDEOGRAM-RH | 1 | ||
| 1-33 | 91M6-60280 | CONTROL IDEOGRAM-R | 1 | ||
| 1-34 | 91M5-00031 | DECAL-TRADE MARK,CWT | 1 | ||
| 1-35 | 91M5-00040 | TRADE MARK-BOOM | 2 | ||
| 1-36 | 91M6-50070 | Реле | 1 | ||
| 1-37 | 91M6-04130 | SWING LOCK | 1 | ||
| 1-38 | 91M6-04140 | SYMBOL-SWING LOCK | 1 | ||
| 1-39 | 91M6-01070 | Встроенный клапан в сборе | 1 | ||
| 1-4 | 91M6-04100 | FUSE BOX | 1 | ||
| 1-40 | 91M6-60250 | FRONT WINDOW | 1 | ||
| 1-41 | 91M6-04150 | OPERATING PATTERN | 1 | ||
| 1-41 | 91M6-04151 | OPERATING PATTERN | 1 | ||
| 1-41 | 91M6-04152 | OPERATING PATTERN | 1 | ||
| 1-5 | 91M6-60080 | EXHAUST | 1 | ||
| 1-5 | 91M6-60370 | DECAL-SAFETY | 1 | ||
| 1-6 | 91M6-04020 | MODEL NAME-R55W-3 | 2 | ||
| 1-7 | 91M6-60100 | SIDE KEEP CLEAR | 2 | ||
| 1-8 | 91M6-60110 | SAFETY LEVER | 1 | ||
| 1-9 | 91M6-04080 | CAUTION DIGGING | 1 | ||
| 2 | 91M6-04010 | DECAL KIT(B)-R55W-3 | 1 | ||
| 2 | 91M6-04011 | DECAL KIT(B)-R55W-3 | 1 | ||
| 2 | 91M6-04012 | DECAL KIT(B)-R55W-3 | 1 | ||
| 2-1 | 91M6-04050 | SERVICE INSTRUCTION | 1 | ||
| 2-2 | 91M6-04060 | CONTROL IDEOGRAM | 1 | ||
| 2-2 | 91M6-04061 | CONTROL IDEOGRAM | 1 | ||
| 2-2 | 91M6-04170 | DECAL-INSTRUCTION | 1 | ||
| 2-3 | 91M6-60190 | CAUTION PLT-GREASE | 1 | ||
| 2-4 | 91M6-60200 | BOOM SWING LOCK | 1 | ||
| 2-4 | 91M6-04180 | DECAL-WINDOW | 1 | ||
| 3 | 91E1-26300 | Наклейка шаг протектора | 3 | ||
| 4 | 91EK-12010 | RIVET | 4 | ||
| 5 | 91M6-60230 | QUICK COUPLER | 1 | ||
| 7 | 91E1-23130 | NOISE LEVEL-LPA | 1 | ||
| 7 | 91M6-04200 | DECAL-NOISE LEVEL | 1 | ||
| 8 | 91E1-23600 | NOISE LEVEL-LWA | 1 |
