REMOTE CONTROL PEDAL экскаватора колесного Hyundai R55W-9
REMOTE CONTROL PEDAL экскаватора колесного Hyundai R55W-9 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4370
Наименование:REMOTE CONTROL PEDAL
Версия:

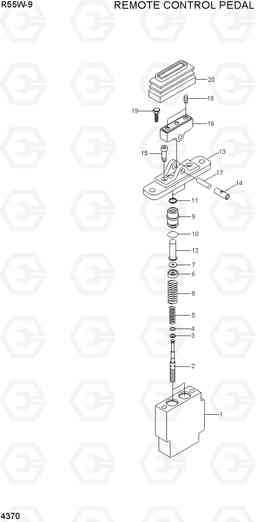

REMOTE CONTROL PEDAL R55W-9
Поз. | Код | Наименование | Кол | Прим. | |
---|---|---|---|---|---|
* | 31MH-20050 | Педаль управления в сборе | 1 |
SEE 3600
|
|
*-1 | XKAY-00715 | SPOOL KIT | 2 |
INCL 2-8
|
|
*-2 | XKAY-00709 | PLUG KIT | 1 |
INCL 9-12
|
|
1 | XKAY-00716 | BODY | 1 | ||
16 | XKAY-00703 | CAM | 1 | ||
20 | XKAY-00699 | BELLOWS | 1 | ||
N | @ | NOT INDIVIDUALLY SUPPLIED | AR | ||
N10 | @ | O-RING | 2 | ||
N11 | @ | SEAL-ROD | 2 | ||
N12 | @ | ROD-PUSH | 2 | ||
N13 | @ | COVER | 1 | ||
N14 | @ | BUSHING-DU | 1 | ||
N15 | @ | BOLT-SOCKET | 2 | ||
N17 | @ | PIN | 2 | ||
N18 | @ | SCREW-ADJUST | 2 | ||
N19 | @ | BOLT-SOCKET | 3 | ||
N2 | @ | SPOOL | 1 | ||
N3 | @ | SEAT-SPRING | 1 | ||
N4 | @ | SHIM | 1 | ||
N5 | @ | SPRING | 1 | ||
N6 | @ | SEAT-SPRING | 1 | ||
N7 | @ | STOPPER | 1 | ||
N8 | @ | SPRING | 2 | ||
N9 | @ | PLUG | 1 |
