CABIN INTERIOR 1 экскаватора колесного Hyundai R55W-7A
CABIN INTERIOR 1 экскаватора колесного Hyundai R55W-7A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6100
Наименование:CABIN INTERIOR 1
Версия:

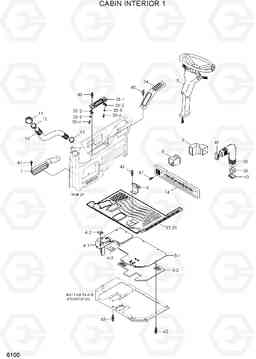

CABIN INTERIOR 1 R55W-7A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 10 | 71N6-20210 | Шланг дефростер | 1 | ||
| 11 | 71M8-21030 | NOZZLE-DEF | 1 | ||
| 12 | S520-055000 | Зажим | 2 | ||
| 14 | 71M8-20272 | COVER-SEAT BASE | 1 | ||
| 3 | 72M8-10271 | COVER ASSY-MCV | 1 | ||
| 3-1 | 72M8-10102 | COVER WA-MCV | 1 | ||
| 3-2 | 72M8-10280 | SPONGE | 1 | ||
| 34 | 71M8-20850 | PANEL-RADIO | 1 | ||
| 35 | 72M8-20860 | KEY PANEL | 1 | ||
| 37 | 72M8-20941 | MAT-FLOOR | 1 |
SINGLE ACTING
|
|
| 38 | 71N6-20450 | фильтр губка | 2 | ||
| 39 | 71N6-20181 | Трубка | 1 | ||
| 4 | 72M8-10291 | COVER ASSY-T/JOINT | 1 | ||
| 4-1 | 72M8-10122 | COVER WA-T/JOINT | 1 | ||
| 4-2 | 72M8-10300 | SPONGE | 1 | ||
| 4-3 | 72M8-10310 | SPONGE | 1 | ||
| 40 | S520-115000 | Зажим | 2 | ||
| 42 | S037-102026 | Болт | 16 | ||
| 43 | S037-102526 | Болт | 17 | ||
| 45 | S131-051526 | SCREW-W/WASHER | 8 | ||
| 47 | S132-061526 | SCREW-W/WASHER | 4 | ||
| 5 | @ | STEERING COLUMN ASSY | 1 |
SEE 6160
|
|
| 51 | 72M8-20950 | MAT-FLOOR | 1 |
DOUBLE ACTING
|
|
| 6 | 71M8-10280 | FOOT REST ASSY-LH | 1 | ||
| 7 | 71M8-20011 | DUCT-FOOT(RH) | 1 | ||
| 8 | 71M8-20021 | DUCT-FOOT(SEAT LOW) | 1 | ||
| 9 | 71M8-20031 | DUCT-FOOT(REAR) | 1 |
