UNDER COVER экскаватора гусеничного Hyundai R800-7A FS
UNDER COVER экскаватора гусеничного Hyundai R800-7A FS со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6260
Наименование:UNDER COVER
Версия:

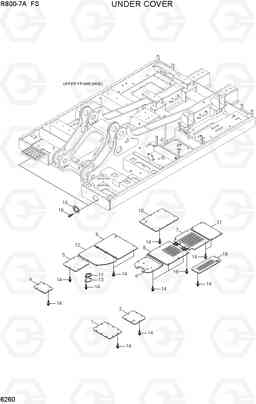

UNDER COVER R800-7A FS
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 41ND-15010 | UNDER COVER | 1 | ||
| 10 | 41ND-15071 | UNDER COVER | 1 | ||
| 11 | 41ND-15091 | UNDER COVER | 1 | ||
| 12 | 41ND-15170 | UNDER COVER | 1 | ||
| 13 | 41N6-10100 | Крышка | 1 | ||
| 14 | S037-122556 | Болт | 73 | ||
| 15 | 41M8-10011BG | GUARD WA-LAMP | 2 | ||
| 16 | S035-082046 | Болт | 4 | ||
| 17 | 41E9-1306 | Сальник | 1 | ||
| 18 | 41ND-15222 | UNDER COVER | 1 | ||
| 19 | S037-122566 | Болт | 3 | ||
| 2 | 41ND-15020 | UNDER COVER | 1 | ||
| 4 | 41ND-15040 | UNDER COVER | 1 | ||
| 5 | 41ND-15050 | UNDER COVER | 1 | ||
| 6 | 41ND-15082 | UNDER COVER | 1 | ||
| 7 | 41ND-15112 | UNDER COVER | 1 | ||
| 8 | 41ND-15210 | UNDER COVER | 1 | ||
| 9 | 41ND-15061 | UNDER COVER | 1 |
