CLUSTER экскаватора гусеничного Hyundai R80CR-9A
CLUSTER экскаватора гусеничного Hyundai R80CR-9A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2080
Наименование:CLUSTER
Версия:

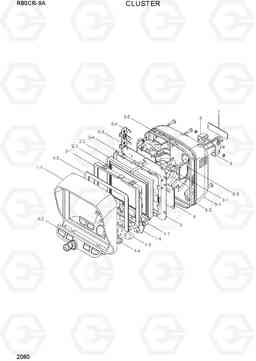

CLUSTER R80CR-9A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT SUPPLIED PARTS | AR | ||
| * | 21M9-36000 | Дисплей | 1 | ||
| 1 | 21M9-37100 | FRONT ASSY | 1 | ||
| 2 | 21M9-37200 | LCD ASSY | 1 | ||
| 3 | 21M9-37350 | MAIN PCB ASSY | 1 | ||
| 4 | 21M9-37400 | POWER PCB ASSY | 1 | ||
| 5 | 21M9-37590 | REAR ASSY | 1 | ||
| 6 | 21M9-37600 | CABLE STPPER | 2 | ||
| 7 | 21M9-37700 | PRODUCT LABEL | 1 | ||
| N1-1 | 21M9-37110 | FRONT CASE | 1 | ||
| N1-2 | 21M9-37120 | MEMBRANE PLATE | 1 | ||
| N1-3 | 21M9-37130 | LCD CUSHION | 1 | ||
| N1-4 | 21M9-37140 | KEY PAD | 1 | ||
| N1-5 | 21M9-37150 | KEY PAD SUPPORT | 1 | ||
| N1-6 | 21M9-37160 | KEY PAD ASSY | 1 | ||
| N1-7 | 21M9-37170 | SCREW SEAT | 1 | ||
| N2-1 | 21M9-37210 | LCD HOLDER | 1 | ||
| N2-2 | 21M9-37220 | LCD MODULE ASSY | 1 | ||
| N2-3 | 21M9-37230 | TOUCH PANEL | 1 | ||
| N2-4 | 21M9-37240 | LCD BRACKET | 1 | ||
| N3-1 | 21M9-37310 | CPU PCB ASSY | 1 | ||
| N5-1 | 21M9-37510 | REAR COVER | 1 | ||
| N5-2 | 21M9-37520 | Прокладка | 1 | ||
| N5-3 | 21M9-37530 | CAP SD CARD | 1 | ||
| N5-4 | 21M9-37540 | CAP USB | 1 | ||
| N5-5 | 21M9-37550 | SPEAKER PROTECTOR | 2 | ||
| N5-8 | 21M9-37580 | SPEAKER | 2 |
