Каталог запчастей
-
Hyundai
-
R140LC-9S(BRAZIL)
- Форсунка топливная (инжектор)
Форсунка топливная (инжектор) экскаватора гусеничного Hyundai R140LC-9S(BRAZIL)
Форсунка топливная (инжектор) экскаватора гусеничного Hyundai R140LC-9S(BRAZIL) со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:9420
Наименование:FUEL INJECTOR
Версия:

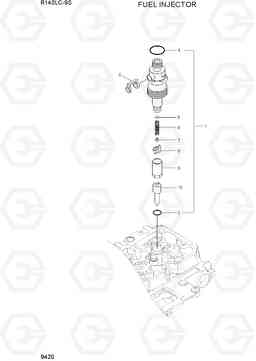

FUEL INJECTOR R140LC-9S(BRAZIL)
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 3802677RX | Ремкоплект форсунок (комплект прокладок) | 6 |
PP8444-01
|
|
| 10 | 3929492 | Распылитель форсунки (сопло) | 6 | ||
| 2 | 3906659 | Прокладка форсунки (сальник) | 1 | ||
| 3 | 3903380 | Разъем банджо печать | 1 | ||
| 4 | 3909356 | Комлект уплотнений , резина | 1 | ||
| 5 | 3905156 | SHIM(1.00T) | 1 |
1.00MM THICK
|
|
| 5 | 3905157 | SHIM(1.04T) | AR |
1.04MM THICK
|
|
| 5 | 3905158 | SHIM(1.08T) | AR |
1.08MM THICK
|
|
| 5 | 3905159 | SHIM(1.10T) | AR |
1.10MM THICK
|
|
| 5 | 3905160 | SHIM(1.14T) | AR |
1.14MM THICK
|
|
| 5 | 3905161 | SHIM(1.18T) | AR |
1.18MM THICK
|
|
| 5 | 3905162 | SHIM(1.20T) | AR |
1.20MM THICK
|
|
| 5 | 3905163 | SHIM(1.24T) | AR |
1.24MM THICK
|
|
| 5 | 3905164 | SHIM(1.28T) | AR |
1.28MM THICK
|
|
| 5 | 3905165 | SHIM(1.30T) | AR |
1.30MM THICK
|
|
| 5 | 3905166 | SHIM(1.34T) | AR |
1.34MM THICK
|
|
| 5 | 3905167 | SHIM(1.38T) | AR |
1.38MM THICK
|
|
| 5 | 3905168 | SHIM(1.40T) | AR |
1.40MM THICK
|
|
| 5 | 3905169 | SHIM(1.44T) | AR |
1.44MM THICK
|
|
| 5 | 3905170 | SHIM(1.48T) | AR |
1.48MM THICK
|
|
| 5 | 3905171 | SHIM(1.50T) | AR |
1.50MM THICK
|
|
| 5 | 3905172 | SHIM(1.54T) | AR |
1.54MM THICK
|
|
| 5 | 3905173 | SHIM(1.58T) | AR |
1.58MM THICK
|
|
| 5 | 3905174 | SHIM(1.60T) | AR |
1.60MM THICK
|
|
| 5 | 3905175 | SHIM(1.64T) | AR |
1.64MM THICK
|
|
| 5 | 3905176 | SHIM(1.68T) | AR |
1.68MM THICK
|
|
| 5 | 3905177 | SHIM(1.70T) | AR |
1.70MM THICK
|
|
| 5 | 3905178 | SHIM(1.74T) | AR |
1.74MM THICK
|
|
| 5 | 3905180 | SHIM(1.78T) | AR |
1.78MM THICK
|
|
| 5 | 3905181 | SHIM(1.80T) | AR |
1.80MM THICK
|
|
| 5 | 3905182 | SHIM(1.84T) | AR |
1.84MM THICK
|
|
| 5 | 3905183 | SHIM(1.88T) | AR |
1.88MM THICK
|
|
| 5 | 3905184 | SHIM(1.90T) | AR |
1.90MM THICK
|
|
| 5 | 3905185 | SHIM(1.94T) | AR |
1.94MM THICK
|
|
| 5 | 3905186 | SHIM(1.98T) | 1 |
1.98MM THICK
|
|
| 6 | 3905152 | Пружина сжатия | 6 | ||
| 7 | 3905153 | SPINDLE-INJECTOR | 6 | ||
| 8 | 3917946 | DISC | 6 | ||
| 9 | 3905155 | RETAINER-INJ NOZZLE | 6 | ||
| N | @ | NOT SUPPLIED PARTS | AR | ||
| N* | 3929490 | Форсунка топливная (инжектор) | 1 |
