- REMOTE CONTROL LEVER
REMOTE CONTROL LEVER фронтального погрузчика колесного Hyundai SL735
REMOTE CONTROL LEVER фронтального погрузчика колесного Hyundai SL735 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4070
Наименование:REMOTE CONTROL LEVER
Версия:

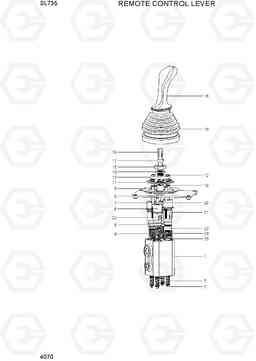

REMOTE CONTROL LEVER SL735
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 31Z2-10230 | RCV-JOYSTICK 2SPOOL | 1 | ||
| 1 | @ | VALVE BODY | 1 | ||
| 10 | @ | SCREW | 4 | ||
| 11 | @ | PRESSURE PLATE UNIT | 4 | ||
| 12 | @ | NUT | 4 | ||
| 13 | @ | MOUNTED PLATE | 1 | ||
| 14 | @ | WASHER | 1 | ||
| 15 | @ | NUT | 1 | ||
| 16 | @ | HANDLE JOINT | 1 | ||
| 17 | @ | NUT | 1 | ||
| 18 | @ | HANDLE UNIT | 1 | ||
| 19 | @ | RUBBER COVER | 1 | ||
| 2 | @ | METERING SPOOL UNIT | 4 | ||
| 20 | @ | ELECTROMAGNET | 3 | ||
| 21 | @ | COMPRESSOR BAR UNIT III | 1 | ||
| 22 | @ | COMPRESSION BAR UNIT I | 2 | ||
| 23 | @ | POSITIONING SLEEVE | 1 | ||
| 24 | @ | SPRING SETS | 1 | ||
| 25 | @ | SPRING SEAT | 1 | ||
| 3 | @ | SPRING SETS | 4 | ||
| 4 | @ | SPRING SETS | 4 | ||
| 5 | @ | COMPRESSOR BAR UNIT II | 1 | ||
| 6 | @ | SHAFT SLEEVE | 1 | ||
| 7 | @ | PRESSURE PIN GROUP | 4 | ||
| 8 | @ | MOUNTING PLATE UNIT | 1 | ||
| 9 | @ | END COVER | 1 |
