STEERING UNIT (TYPE 2) фронтального погрузчика колесного Hyundai SL765
STEERING UNIT (TYPE 2) фронтального погрузчика колесного Hyundai SL765 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4060
Наименование:STEERING UNIT (TYPE 2)
Версия:2014. 3.31 REV.14C

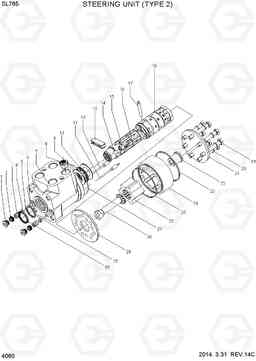

STEERING UNIT (TYPE 2) SL765
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT SUPPLIED PARTS | AR | ||
| * | 31Z1-30810 | STEERING UNIT | 1 |
WHITE
|
|
| K | XCCB-00001 | Ремкомплект / комплект уплотнений (ремкомплект) | 1 | ||
| N1 | @ | SHOCK PLUG | 2 | ||
| N10 | @ | THRUST BEARING | 2 | ||
| N11 | @ | BALL | 2 | ||
| N12 | @ | GROOVED PINS | 6 | ||
| N13 | @ | SPRING | 1 | ||
| N14 | @ | BALL | 1 | ||
| N15 | @ | LINKED NUT | 1 | ||
| N16 | @ | SPOOL | 1 | ||
| N17 | @ | PIN | 1 | ||
| N18 | @ | SLEEVE | 1 | ||
| N19 | @ | BOLT | 7 | ||
| N2 | @ | SHOCK REGULATING NUT | 2 | ||
| N3 | @ | SHOCK SPRING | 2 | ||
| N4 | @ | SHOCK SPRING SEAT | 2 | ||
| N5 | @ | BALL | 2 | ||
| N6 | @ | SHOCK SEAT | 1 | ||
| N7 | @ | HOUSING | 1 | ||
| N8 | @ | CHECK VALVE | 2 | ||
| N9 | @ | THRUST WASHER | 1 | ||
| NK20 | @ | WASHER | 7 | ||
| NK21 | @ | END COVER | 1 | ||
| NK22 | @ | SPACER | 1 | ||
| NK23 | @ | SEAL O-RING | 2 | ||
| NK24 | @ | STATOR | 1 | ||
| NK25 | @ | ROTOR | 1 | ||
| NK26 | @ | DRIVE LINK | 1 | ||
| NK27 | @ | SEAL O-RING | 1 | ||
| NK28 | @ | WEAR PLATE | 1 | ||
| NK29 | @ | SHAFT SEAL | 1 | ||
| NK30 | @ | DUST SEAL | 1 |
