Каталог запчастей
-
Volvo Construction Equipment
-
EC50 TYPE 247
- Hydraulic circuit ( accessories - 75 l/min )
Hydraulic circuit ( accessories - 75 l/min ) мини экскаватора Volvo Construction Equipment EC50 TYPE 247
Hydraulic circuit ( accessories - 75 l/min ) мини экскаватора Volvo Construction Equipment EC50 TYPE 247 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:104572
Наименование:Hydraulic circuit ( accessories - 75 l/min )
Версия:

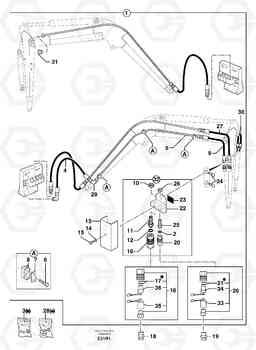

Hydraulic circuit ( accessories - 75 l/min ) EC50 TYPE 247
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | PJ 6470040 | Гидравлическая система | 1 |
L = 1500 mm / 59,0550 in
|
|
| 1 | PJ 6660189 | Гидравлическая система | 1 |
L = 1900 mm / 74,8030 in
|
|
| 10 | PJ 4770129 | Гайка | 1 |
INCL IN 32, M30
|
|
| 11 | PJ 4750111 | Переходник масляного фильтра | 1 |
INCL IN 32
|
|
| 12 | VOE 944252 | Прокладка | 1 |
INCL IN 32
|
|
| 13 | PJ 5040116 | Apron | 1 |
INCL IN 1
|
|
| 14 | VOE 13955894 | Шайба | 1 |
INCL IN 1, MU8
|
|
| 14 | VOE 13955894 | Шайба | 1 |
INCL IN 1, MU8
|
|
| 15 | PJ 4380043 | Болт | 1 |
INCL IN 1, HM8X20
|
|
| 16 | PJ 4750305 | Breather cap | 1 |
INCL IN 32
|
|
| 18 | VOE 11806378 | Переходник масляного фильтра | 1 | ||
| 19 | VOE 11806402 | Переходник масляного фильтра | 1 | ||
| 2 | VOE 943908 | Прокладка | 1 |
INCL IN 32
|
|
| 20 | PJ 4750304 | Coupler | 1 |
INCL IN 32
|
|
| 22 | PJ 3810521 | Кронштейн | 1 |
INCL IN 32
|
|
| 23 | VOE 11806248 | 11806248 | 1 |
INCL IN 32
|
|
| 24 | VOE 978994 | Split pin | 1 |
INCL IN 1
|
|
| 25 | PJ 4750110 | Переходник масляного фильтра | 1 |
INCL IN 32
|
|
| 26 | PJ 4770130 | Гайка | 1 |
INCL IN 32, M22
|
|
| 27 | PJ 4195690 | High pressure hose | 1 |
L = 750mm/29.5275in
|
|
| 27 | PJ 4190539 | High pressure hose | 1 |
L = 1100mm/43.3070in
|
|
| 28 | PJ 7450371 | Sealing Kit | 1 | ||
| 29 | PJ 4700017 | Elbow | 1 |
INCL IN 1
|
|
| 3 | PJ 7450372 | Sealing Kit | 1 | ||
| 30 | PJ 4190539 | High pressure hose | 1 |
L = 1100mm/43.3070in
|
|
| 30 | PJ 4190536 | High pressure hose | 1 |
L = 800mm/31.4960in
|
|
| 31 | PJ 4740030 | Пробка (заглушка) | 1 |
INCL IN 1
|
|
| 32 | PJ 6660193 | Coupler kit | 1 |
INCL IN 1
|
|
| 33 | VOE 11716020 | Cowl | 1 |
INCL IN 20, 1/2"
|
|
| 33 | VOE 11716020 | Cowl | 1 |
INCL IN 20, 1/2"
|
|
| 34 | VOE 11716021 | Пробка (заглушка) | 1 |
INCL IN 20, 1/2"
|
|
| 34 | VOE 11716021 | Пробка (заглушка) | 1 |
INCL IN 20, 1/2"
|
|
| 35 | ZM 2814837 | Dust cover | 1 |
INCL IN 16, 3/4"
|
|
| 35 | ZM 2814837 | Dust cover | 1 |
INCL IN 16, 3/4"
|
|
| 36 | ZM 2814836 | Dust cover | 1 |
INCL IN 16, 3/4"
|
|
| 36 | ZM 2814836 | Dust cover | 1 |
INCL IN 16, 3/4"
|
|
| 36 | ZM 2814836 | Dust cover | 1 |
INCL IN 16, 3/4"
|
|
| 4 | PJ 4190816 | High pressure hose | 1 |
INCL IN 1, 1''
|
|
| 5 | PJ 5910194 | Трубка | 1 |
INCL IN 1
|
|
| 6 | PJ 4380026 | Болт | 1 |
INCL IN 1, HM6X50
|
|
| 7 | PJ 4690148 | Пластина | 1 |
INCL IN 1
|
|
| 8 | PJ 4690147 | Фланец | 1 |
INCL IN 1
|
|
| 9 | PJ 4190838 | High pressure hose | 1 |
L = 950mm/37.4015in
|
|
| 9 | PJ 4190872 | High pressure hose | 1 |
L = 750mm/29.5275in
|
