Каталог запчастей
-
Volvo Construction Equipment
-
EC70 TYPE 233
- Hydraulic circuit ( accessories - 90 l/min )
Hydraulic circuit ( accessories - 90 l/min ) мини экскаватора Volvo Construction Equipment EC70 TYPE 233
Hydraulic circuit ( accessories - 90 l/min ) мини экскаватора Volvo Construction Equipment EC70 TYPE 233 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:105617
Наименование:Hydraulic circuit ( accessories - 90 l/min )
Версия:

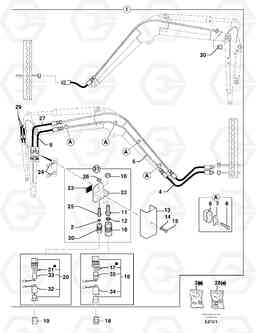

Hydraulic circuit ( accessories - 90 l/min ) EC70 TYPE 233
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | PJ 6820106 | Гидравлическая система | 1 | ||
| 1 | PJ 6820123 | Гидравлическая система | 1 | ||
| 10 | PJ 4770129 | Гайка | 1 |
INCL IN 31, M30
|
|
| 11 | PJ 4750111 | Переходник масляного фильтра | 1 |
INCL IN 31
|
|
| 12 | VOE 944252 | Прокладка | 1 |
INCL IN 31
|
|
| 13 | PJ 5040116 | Apron | 1 |
INCL IN 1
|
|
| 14 | VOE 13955894 | Шайба | 1 |
INCL IN 1, MU8
|
|
| 14 | VOE 13955894 | Шайба | 1 |
INCL IN 1, MU8
|
|
| 15 | PJ 4380043 | Болт | 1 |
INCL IN 1, HM8X20
|
|
| 16 | PJ 4750305 | Breather cap | 1 |
INCL IN 31, 3/4"
|
|
| 18 | VOE 11806378 | Переходник масляного фильтра | 1 | ||
| 19 | VOE 11806402 | Переходник масляного фильтра | 1 | ||
| 2 | VOE 943908 | Прокладка | 1 |
INCL IN 31
|
|
| 20 | PJ 4750304 | Coupler | 1 |
INCL IN 31, 1/2"
|
|
| 22 | PJ 3810521 | Кронштейн | 1 |
INCL IN 31
|
|
| 23 | VOE 11806248 | 11806248 | 1 |
INCL IN 31
|
|
| 24 | VOE 978994 | Split pin | 1 |
INCL IN 1
|
|
| 25 | PJ 4750110 | Переходник масляного фильтра | 1 |
INCL IN 31
|
|
| 26 | PJ 4770130 | Гайка | 1 |
INCL IN 31, M22
|
|
| 27 | PJ 4190638 | High pressure hose | 1 |
L = 950mm/37.4015in
|
|
| 27 | PJ 4196048 | High pressure hose | 1 |
L = 1230mm/48.4251in
|
|
| 28 | PJ 7450371 | Sealing Kit | 1 | ||
| 29 | PJ 4196049 | High pressure hose | 1 |
L = 1160mm/45,6692in
|
|
| 29 | PJ 4196045 | High pressure hose | 1 |
L = 900mm/35,4330in
|
|
| 3 | PJ 7450372 | Sealing Kit | 1 | ||
| 30 | PJ 4740039 | Пробка (заглушка) | 1 |
INCL IN 1
|
|
| 31 | PJ 6820164 | Coupler kit | 1 |
INCL IN 1
|
|
| 32 | VOE 11716020 | Cowl | 1 |
INCL IN 20, 1/2"
|
|
| 32 | VOE 11716020 | Cowl | 1 |
INCL IN 20, 1/2"
|
|
| 33 | VOE 11716021 | Пробка (заглушка) | 1 |
INCL IN 20, 1/2"
|
|
| 33 | VOE 11716021 | Пробка (заглушка) | 1 |
INCL IN 20, 1/2"
|
|
| 34 | ZM 2814837 | Dust cover | 1 |
INCL IN 16, 3/4"
|
|
| 34 | ZM 2814837 | Dust cover | 1 |
INCL IN 16, 3/4"
|
|
| 35 | ZM 2814836 | Dust cover | 1 |
INCL IN 16, 3/4"
|
|
| 35 | ZM 2814836 | Dust cover | 1 |
INCL IN 16, 3/4"
|
|
| 35 | ZM 2814836 | Dust cover | 1 |
INCL IN 16, 3/4"
|
|
| 4 | PJ 4190865 | High pressure hose | 1 |
INCL IN 1, 1"
|
|
| 5 | PJ 5910586 | Трубка | 1 |
INCL IN 1
|
|
| 6 | PJ 4380026 | Болт | 1 |
INCL IN 1, HM6X50
|
|
| 7 | PJ 4690148 | Пластина | 1 |
INCL IN 1
|
|
| 8 | PJ 4690147 | Фланец | 1 |
INCL IN 1
|
|
| 9 | PJ 4190867 | High pressure hose | 1 |
L = 1170mm/46,0629in
|
|
| 9 | PJ 4190866 | High pressure hose | 1 |
L = 1000mm/39,3700in
|
