Cover plates and doors самосвала cочлененного Volvo Construction Equipment 5350 5350
Cover plates and doors самосвала cочлененного Volvo Construction Equipment 5350 5350 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:69524
Наименование:Cover plates and doors
Версия:

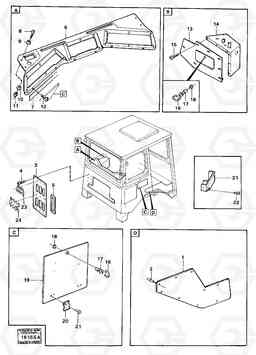

Cover plates and doors 5350 5350
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 13960138 | Шайба | 1 | |||
| VOE 13960138 | Шайба | 1 | |||
| 1 | VOE 4820380 | Пластина | 1 |
SER NO -1875
|
|
| 10 | VOE 960139 | Шайба | 1 | ||
| 10 | VOE 960139 | Шайба | 1 | ||
| 11 | VOE 13963105 | Lock nut | 1 | ||
| 11 | VOE 13963105 | Lock nut | 1 | ||
| 12 | VOE 944214 | Болт | 1 | ||
| 13 | VOE 4820814 | Пластина | 1 | ||
| 14 | VOE 4820816 | Кронштейн | 1 |
CAB -1616
|
|
| 15 | VOE 956092 | Cross recessed screw | 1 | ||
| 15 | VOE 956092 | Cross recessed screw | 1 | ||
| 16 | VOE 784180 | Attaching ring | 1 | ||
| 16 | VOE 784180 | Attaching ring | 1 | ||
| 17 | VOE 4780141 | 4780141 | 1 | ||
| 18 | VOE 13951669 | Retaining ring | 1 | ||
| 18 | VOE 13951669 | Retaining ring | 1 | ||
| 2 | VOE 942669 | Rivet | 1 |
SER NO -1875
|
|
| 20 | VOE 4820656 | Пружина | 1 | ||
| 21 | VOE 283670 | Door pocket | 1 |
H
|
|
| 22 | VOE 947251 | Cross Recessed Screw | 1 | ||
| 23 | VOE 4843299 | Шайба | 1 | ||
| 24 | VOE 4843300 | Шайба | 1 | ||
| 3 | VOE 4820603 | Пластина | 1 | ||
| 4 | VOE 956094 | Cross recessed screw | 1 | ||
| 4 | VOE 956094 | Cross recessed screw | 1 | ||
| 5 | VOE 4821339 | Прокладка | 1 | ||
| 6 | VOE 4820852 | Instrument panel | 1 | ||
| 7 | VOE 4786044 | Прокладка стекла | 1 |
L=1260
|
|
| 8 | VOE 956317 | Cross recessed sunk screw | 1 | ||
| 9 | VOE 13960272 | Body washer | 1 |
