Каталог запчастей
-
Volvo Construction Equipment
-
5350 5350
- Lighting,tractor
Lighting,tractor самосвала cочлененного Volvo Construction Equipment 5350 5350
Lighting,tractor самосвала cочлененного Volvo Construction Equipment 5350 5350 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:80301
Наименование:Lighting,tractor
Версия:

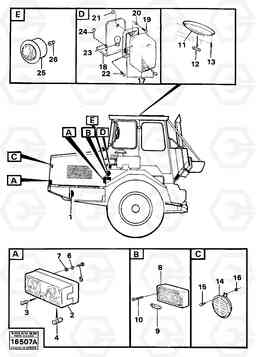

Lighting,tractor 5350 5350
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 1576682 | Side marking lamp | 1 |
SER NO - 1554
|
||
| VOE 1576682 | Side marking lamp | 1 |
SER NO - 1554
|
||
| VOE 4785120 | Position lamp | 1 | |||
| VOE 955123 | Cross recessed screw | 1 |
L=19
|
||
| 1 | VOE 241067 | Headlamp insert | 1 | ||
| 1 | VOE 241067 | Термостат | 1 | ||
| 10 | VOE 955120 | Cross recessed screw | 1 | ||
| 10 | VOE 955120 | Cross recessed screw | 1 | ||
| 11 | VOE 1586223 | Lamp | 1 | ||
| 12 | VOE 182048 | Bulb | 1 | ||
| 13 | VOE 969278 | Винт шестигранник (торцевой ключ) | 1 | ||
| 13 | VOE 969278 | Винт шестигранник (торцевой ключ) | 1 | ||
| 14 | VOE 4786872 | Horn | 1 | ||
| 14 | VOE 4786872 | Horn | 1 | ||
| 15 | VOE 946472 | Flange screw | 1 | ||
| 15 | VOE 946472 | Flange screw | 1 | ||
| 16 | VOE 13971098 | Flange nut | 1 | ||
| 16 | VOE 13971098 | Flange nut | 1 | ||
| 17 | VOE 6857613 | Dir Indicator | 1 | ||
| 19 | VOE 956086 | Cross recessed screw | 1 | ||
| 19 | VOE 956086 | Cross recessed screw | 1 | ||
| 2 | VOE 6644374 | Lens | 1 | ||
| 20 | VOE 13940090 | Шайба | 1 | ||
| 20 | VOE 13940090 | Шайба | 1 | ||
| 21 | VOE 13963104 | Lock nut | 1 | ||
| 21 | VOE 13963104 | Lock nut | 1 | ||
| 22 | VOE 956084 | Cross recessed screw | 1 | ||
| 22 | VOE 956084 | Cross recessed screw | 1 | ||
| 23 | VOE 967708 | Bulb | 1 | ||
| 23 | VOE 967708 | Bulb | 1 | ||
| 24 | VOE 955137 | Cross recessed screw | 1 | ||
| 24 | VOE 955137 | Cross recessed screw | 1 | ||
| 25 | VOE 6648884 | Spotlight | 1 | ||
| 26 | VOE 943903 | Bulb | 1 | ||
| 26 | VOE 943903 | Bulb | 1 | ||
| 3 | VOE 967709 | Bulb | 1 |
5W
|
|
| 3 | VOE 967709 | Bulb | 1 |
5W
|
|
| 4 | VOE 967708 | Bulb | 1 |
21W
|
|
| 4 | VOE 967708 | Bulb | 1 |
21W
|
|
| 5 | VOE 13955247 | Болт | 1 |
L=20
|
|
| 5 | VOE 13955247 | Болт | 1 |
L=20
|
|
| 6 | VOE 13940090 | Шайба | 1 | ||
| 6 | VOE 13940090 | Шайба | 1 | ||
| 7 | VOE 13963104 | Lock nut | 1 | ||
| 7 | VOE 13963104 | Lock nut | 1 | ||
| 8 | VOE 1576684 | Lens | 1 | ||
| 8 | VOE 1576684 | Lens | 1 | ||
| 9 | VOE 7019926 | Bulb | 1 |
7W
|
|
| 9 | VOE 7019926 | Bulb | 1 |
7W
|
