Hydraulic controls loader unit 98888 погрузчика колесного Volvo Construction Equipment 616B/646 616B,646 D45, TD45
Hydraulic controls loader unit 98888 погрузчика колесного Volvo Construction Equipment 616B/646 616B,646 D45, TD45 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:28774
Наименование:Hydraulic controls loader unit 98888
Версия:

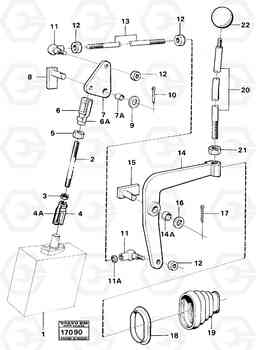

Hydraulic controls loader unit 98888 616B/646 616B,646 D45, TD45
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 10 | VOE 13907851 | Cotter Pin | 1 | ||
| 11 | VOE 959081 | Anl Ball Joint | 1 | ||
| 11 | VOE 959081 | Anl Ball Joint | 1 | ||
| 11A | VOE 13940109 | Toothed Washer | 1 | ||
| 11A | VOE 13940109 | Стопорная шайба (кольцо) | 1 | ||
| 12 | VOE 971071 | Hexagon Nut | 1 | ||
| 12 | VOE 971071 | Hexagon Nut | 1 | ||
| 13 | VOE 4724613 | Link Rod | 1 | ||
| 14 | VOE 4724608 | Lever | 1 | ||
| 14A | VOE 13945853 | Втулка | 1 | ||
| 14A | VOE 13945853 | Втулка | 1 | ||
| 16 | VOE 955899 | Шайба | 1 | ||
| 16 | VOE 955899 | Шайба | 1 | ||
| 17 | VOE 13907851 | Cotter Pin | 1 | ||
| 19 | VOE 4724485 | Rubber Bellows | 1 | ||
| 2 | VOE 4866953 | Pull Rod | 1 | ||
| 20 | VOE 4724607 | Control Lever | 1 | ||
| 21 | VOE 13971072 | Hexagon Nut | 1 | ||
| 21 | VOE 13971072 | Hexagon Nut | 1 | ||
| 22 | VOE 192624 | Ball | 1 | ||
| 22 | VOE 192624 | Ball | 1 | ||
| 3 | VOE 955782 | Hexagon Nut | 1 | ||
| 3 | VOE 955782 | Hexagon Nut | 1 | ||
| 4 | VOE 4866584 | Fork | 1 | ||
| 5 | VOE 971071 | Hexagon Nut | 1 | ||
| 5 | VOE 971071 | Hexagon Nut | 1 | ||
| 6 | VOE 4724203 | Fork | 1 | ||
| 7 | VOE 4724612 | Anchorage | 1 | ||
| 7A | VOE 13945853 | Втулка | 1 | ||
| 7A | VOE 13945853 | Втулка | 1 | ||
| 9 | VOE 955899 | Шайба | 1 | ||
| 9 | VOE 955899 | Шайба | 1 |
