Каталог запчастей
-
Volvo Construction Equipment
-
4200B 4200B
- Leak-oil filter.
Leak-oil filter. погрузчика колесного Volvo Construction Equipment 4200B 4200B
Leak-oil filter. погрузчика колесного Volvo Construction Equipment 4200B 4200B со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:104348
Наименование:Leak-oil filter.
Версия:90314, 90340

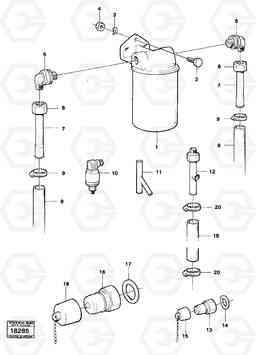

Leak-oil filter. 4200B 4200B
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 11996026 | Filter cartridge | 1 | |||
| 1 | VOE 11996025 | Фильтр масляный | 1 | ||
| 10 | VOE 4881462 | Pressure monitor | 1 | ||
| 10 | VOE 4881462 | Pressure monitor | 1 | ||
| 11 | VOE 4927195 | Трубка | 1 | ||
| 11 | VOE 4927195 | Трубка | 1 | ||
| 12 | VOE 4948593 | Junction pipe | 1 | ||
| 13 | VOE 4881476 | Snap-on coupling | 1 | ||
| 13 | VOE 4881476 | Snap-on coupling | 1 | ||
| 14 | VOE 14042936 | Sealing washer | 1 | ||
| 14 | VOE 14042936 | Sealing washer | 1 | ||
| 15 | VOE 4880262 | Dust cover | 1 | ||
| 15 | VOE 4880262 | Dust cover | 1 | ||
| 16 | VOE 11043022 | Nipple | 1 | ||
| 16 | VOE 11043022 | Nipple | 1 | ||
| 17 | VOE 14013070 | Sealing washer | 1 | ||
| 17 | VOE 14013070 | Sealing washer | 1 | ||
| 18 | VOE 11147586 | Dust cover | 1 | ||
| 18 | VOE 11147586 | Dust cover | 1 | ||
| 19 | VOE 14016472 | Oil hose | 1 |
L = 2000
|
|
| 2 | VOE 955297 | Винт шестигранник | 1 | ||
| 2 | VOE 955297 | Винт шестигранник | 1 | ||
| 20 | VOE 926244 | Hose clamp | 1 | ||
| 20 | VOE 926244 | Hose clamp | 1 | ||
| 3 | VOE 13941907 | Шайба пружинная | 1 | ||
| 3 | VOE 13941907 | Шайба | 1 | ||
| 4 | VOE 955782 | Hexagon nut | 1 | ||
| 4 | VOE 955782 | Hexagon nut | 1 | ||
| 5 | VOE 931234 | Nipple | 1 | ||
| 5 | VOE 931234 | Nipple | 1 | ||
| 6 | VOE 4785906 | Гайка | 1 | ||
| 6 | VOE 4785906 | Гайка | 1 | ||
| 9 | VOE 930805 | Hose clamp | 1 |
