Каталог запчастей
-
Volvo Construction Equipment
-
6300 6300
- El. hydraulic servo system
El. hydraulic servo system погрузчика колесного Volvo Construction Equipment 6300 6300
El. hydraulic servo system погрузчика колесного Volvo Construction Equipment 6300 6300 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:32924
Наименование:El. hydraulic servo system
Версия:90728

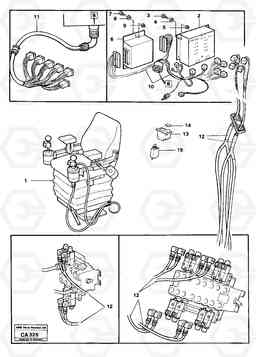

El. hydraulic servo system 6300 6300
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 958220 | Cable terminal | 1 | |||
| VOE 958220 | Cable terminal | 1 | |||
| VOE 11039386 | Relay Unit | 1 |
SER NO 1550, 1570 -
|
||
| VOE 11039386 | Relay Unit | 1 |
SER NO 1550, 1570 -
|
||
| VOE 11008090 | Cable harness | 1 |
SER NO 1550, 1570 -
|
||
| VOE 11992384 | Ptd Circuit Bd | 1 |
REINFORCING
|
||
| VOE 11992385 | Ptd Circuit Bd | 1 |
STABILIZATION
|
||
| 10 | VOE 11008249 | Cable harness | 1 |
SER NO - 1569
|
|
| 11 | VOE 11008246 | Cable harness | 1 | ||
| 12 | VOE 11008244 | Cable harness | 1 | ||
| 13 | VOE 4803464 | Переключатель | 1 | ||
| 14 | VOE 11039015 | Lens | 1 | ||
| 14 | VOE 11039015 | Lens | 1 | ||
| 15 | VOE 11039008 | Breaker | 1 | ||
| 15 | VOE 11039008 | Breaker | 1 | ||
| 2 | VOE 11008069 | Control Unit | 1 |
IPS
|
|
| 2 | VOE 11008069 | Control Unit | 1 |
IPS
|
|
| 3 | VOE 967390 | X Rec Screw | 1 | ||
| 3 | VOE 967390 | X Rec Screw | 1 | ||
| 4 | VOE 955892 | Шайба | 1 | ||
| 4 | VOE 955892 | Шайба | 1 | ||
| 5 | VOE 13955781 | Гайка | 1 | ||
| 5 | VOE 13955781 | Гайка | 1 | ||
| 6 | VOE 11041503 | Relay Unit | 1 |
SER NO - 1569
|
|
| 7 | VOE 947360 | Болт | 1 | ||
| 7 | VOE 947360 | Screw | 1 | ||
| 8 | VOE 13940090 | Шайба | 1 | ||
| 8 | VOE 13940090 | Шайба | 1 | ||
| 9 | VOE 955780 | Hexagon Nut | 1 | ||
| 9 | VOE 955780 | Hexagon Nut | 1 |
