Каталог запчастей
-
Volvo Construction Equipment
-
6300 6300
- Hydraulic attachment bracket
Hydraulic attachment bracket погрузчика колесного Volvo Construction Equipment 6300 6300
Hydraulic attachment bracket погрузчика колесного Volvo Construction Equipment 6300 6300 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4390
Наименование:Hydraulic attachment bracket
Версия:99520

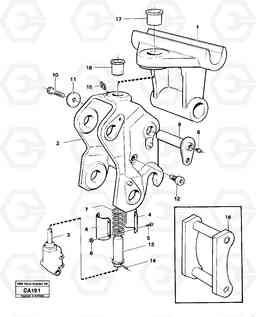

Hydraulic attachment bracket 6300 6300
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 11011818 | Inner link | 1 |
SER NO 2202 -
|
||
| VOE 4858914 | Tool bar | 1 |
SER NO - 1863
|
||
| VOE 11011817 | Tool bar | 1 |
SER NO 2202 -
|
||
| VOE 4858916 | Болт | 1 | |||
| VOE 951993 | Spring pin | 1 | |||
| VOE 951993 | Spring pin | 1 | |||
| VOE 11011100 | Tool bar | 1 |
SER NO - 2201
|
||
| 1 | VOE 4934699 | Inner link | 1 |
SER NO - 2201
|
|
| 10 | VOE 955368 | Винт шестигранник | 1 | ||
| 10 | VOE 955368 | Винт шестигранник | 1 | ||
| 11 | VOE 4934477 | Шайба | 1 | ||
| 12 | VOE 4934476 | Болт | 1 |
REPL BY 4858916
|
|
| 13 | VOE 4857793 | Tension pin | 1 | ||
| 14 | VOE 951970 | Spring pin | 1 | ||
| 15 | VOE 914167 | Lubricating nipple | 1 | ||
| 15 | VOE 914167 | Lubricating nipple | 1 | ||
| 16 | VOE 4933915 | Attachment | 1 | ||
| 17 | VOE 11011386 | Втулка | 1 |
SER NO 2202 -
|
|
| 18 | VOE 11011387 | Втулка | 1 |
SER NO 2202 -
|
|
| 2 | VOE 4934380 | Tool bar | 1 |
REPL BY 4858914
|
|
| 4 | VOE 4945445 | Casing | 1 | ||
| 5 | VOE 956092 | Cross recessed screw | 1 | ||
| 5 | VOE 956092 | Cross recessed screw | 1 | ||
| 6 | VOE 13955781 | Гайка | 1 | ||
| 6 | VOE 13955781 | Гайка | 1 | ||
| 7 | VOE 4880886 | Compression spring | 1 | ||
| 8 | VOE 784323 | Nipple | 1 | ||
| 8 | VOE 784323 | Nipple | 1 | ||
| 9 | VOE 4933066 | 4933066 | 1 |
