Каталог запчастей
-
Volvo Construction Equipment
-
6300 6300
- Instrument panel center front
Instrument panel center front погрузчика колесного Volvo Construction Equipment 6300 6300
Instrument panel center front погрузчика колесного Volvo Construction Equipment 6300 6300 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:62088
Наименование:Instrument panel center front
Версия:

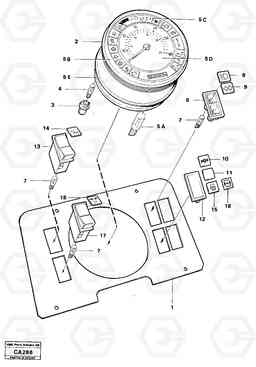

Instrument panel center front 6300 6300
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 11039455 | Lens | 1 | |||
| 10 | VOE 11039455 | Lens | 1 | ||
| 12 | VOE 4803467 | Protecting cover | 1 | ||
| 12 | VOE 4803467 | Protecting cover | 1 | ||
| 13 | VOE 4803507 | 4803507 | 1 | ||
| 14 | VOE 11039532 | Lens | 1 | ||
| 14 | VOE 11039532 | Lens | 1 | ||
| 15 | VOE 11039450 | Lens | 1 | ||
| 16 | VOE 4803705 | Lens | 1 | ||
| 17 | VOE 4803456 | Переключатель | 1 | ||
| 18 | VOE 11039505 | Lens | 1 | ||
| 2 | VOE 11039089 | Instrument | 1 | ||
| 3 | VOE 966327 | Bulb | 1 | ||
| 4 | VOE 11997242 | Bulb | 1 |
24V/1,2W
|
|
| 5A | VOE 13946058 | Bulb | 1 |
24V/3W
|
|
| 5A | VOE 13946058 | Bulb | 1 |
24V/3W
|
|
| 5B | VOE 11992797 | Картер (корпус) | 1 | ||
| 5C | VOE 11992798 | Fuel gauge | 1 |
TEMP./TANK
|
|
| 5D | VOE 11992799 | Tachometer | 1 | ||
| 5E | VOE 11992802 | Base plate | 1 | ||
| 6 | VOE 4803465 | Control lamp | 1 | ||
| 6 | VOE 4803465 | Control lamp | 1 | ||
| 7 | VOE 11997242 | Bulb | 1 | ||
| 8 | VOE 4803526 | Lens | 1 | ||
| 9 | VOE 4803510 | Lens | 1 |
