Каталог запчастей
-
Volvo Construction Equipment
-
5350B Volvo BM 5350B SER NO 2229 - 3999
- Fuel pipe - fuel tank td 71 ga
Fuel pipe - fuel tank td 71 ga самосвала cочлененного Volvo Construction Equipment 5350B Volvo BM 5350B SER NO 2229 - 3999
Fuel pipe - fuel tank td 71 ga самосвала cочлененного Volvo Construction Equipment 5350B Volvo BM 5350B SER NO 2229 - 3999 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:25701
Наименование:Fuel pipe - fuel tank td 71 ga
Версия:

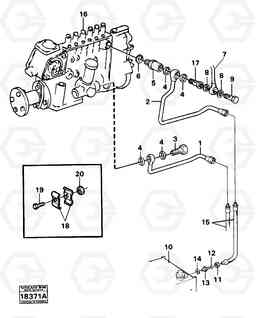

Fuel pipe - fuel tank td 71 ga 5350B Volvo BM 5350B SER NO 2229 - 3999
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | VOE 11030583 | Fuel pipe | 1 | ||
| 11 | VOE 956983 | Фиттинг | 1 | ||
| 12 | VOE 980781 | Ferrule | 1 | ||
| 13 | VOE 941754 | Nipple | 1 | ||
| 13 | VOE 941754 | Nipple | 1 | ||
| 14 | VOE 957178 | Gasket | 1 | ||
| 14 | VOE 957178 | Прокладка | 1 | ||
| 15 | VOE 4737702 | Шланг топливный | 1 | ||
| 17 | VOE 7016496 | Hollow screw | 1 | ||
| 17 | VOE 7016496 | Hollow screw | 1 | ||
| 18 | VOE 404279 | Зажим | 1 | ||
| 18 | VOE 404279 | Зажим | 1 | ||
| 19 | VOE 956097 | Cross recessed screw | 1 |
M6X25
|
|
| 19 | VOE 956097 | Cross recessed screw | 1 |
M6X25
|
|
| 2 | VOE 4772216 | Fuel pipe | 1 | ||
| 20 | VOE 13955781 | Гайка | 1 | ||
| 20 | VOE 13955781 | Гайка | 1 | ||
| 3 | VOE 7025167 | Hollow screw | 1 | ||
| 3 | VOE 7025167 | Hollow screw | 1 | ||
| 4 | VOE 13947621 | Plane gasket | 1 | ||
| 4 | VOE 13947621 | Plane gasket | 1 | ||
| 5 | VOE 7035096 | Overflow valve | 1 | ||
| 5 | VOE 7035096 | Overflow valve | 1 | ||
| 6 | VOE 13947621 | Plane gasket | 1 | ||
| 6 | VOE 13947621 | Plane gasket | 1 | ||
| 7 | VOE 848523 | Leak-off line | 1 | ||
| 8 | VOE 947620 | Прокладка | 1 | ||
| 8 | VOE 947620 | Прокладка | 1 | ||
| 9 | VOE 7074033 | Hollow screw | 1 | ||
| 9 | VOE 7074033 | Hollow screw | 1 |
