Каталог запчастей
-
Volvo Construction Equipment
-
5350B Volvo BM 5350B SER NO 2229 - 3999

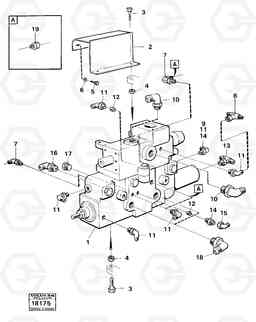

- Pilot and tipping valve fitting.
Pilot and tipping valve fitting. самосвала cочлененного Volvo Construction Equipment 5350B Volvo BM 5350B SER NO 2229 - 3999
Pilot and tipping valve fitting. самосвала cочлененного Volvo Construction Equipment 5350B Volvo BM 5350B SER NO 2229 - 3999 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:77914
Наименование:Pilot and tipping valve fitting.
Версия:SER NO - 2123
Pilot and tipping valve fitting. 5350B Volvo BM 5350B SER NO 2229 - 3999
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 931235 | Nipple | 1 | |||
| VOE 931235 | Nipple | 1 | |||
| VOE 931219 | Back-up ring | 1 | |||
| VOE 931219 | Back-up ring | 1 | |||
| VOE 931212 | Кольцо уплотнительное (О-кольцо) | 1 | |||
| VOE 931212 | Кольцо уплотнительное (О-кольцо) | 1 | |||
| VOE 931230 | Nipple | 1 |
SER NO 1850-
|
||
| VOE 931230 | Nipple | 1 |
SER NO 1850-
|
||
| 10 | VOE 931235 | Nipple | 1 | ||
| 10 | VOE 931235 | Nipple | 1 | ||
| 11 | VOE 931230 | Nipple | 1 |
SER NO -1849
|
|
| 11 | VOE 931230 | Nipple | 1 |
SER NO -1849
|
|
| 12 | VOE 4821914 | Screw Bushing | 1 | ||
| 13 | VOE 931237 | Nipple | 1 | ||
| 14 | VOE 931223 | Nipple | 1 | ||
| 14 | VOE 931223 | Nipple | 1 | ||
| 15 | VOE 4821879 | Clutch | 1 | ||
| 16 | VOE 931242 | Nipple | 1 | ||
| 16 | VOE 931242 | Nipple | 1 | ||
| 17 | VOE 931228 | Nipple | 1 | ||
| 17 | VOE 931228 | Nipple | 1 | ||
| 18 | VOE 4940647 | Elbow nipple | 1 | ||
| 19 | VOE 4864824 | Reduction | 1 | ||
| 3 | VOE 13965185 | Screw | 1 | ||
| 3 | VOE 13965185 | Болт | 1 | ||
| 5 | VOE 13946173 | Screw | 1 | ||
| 5 | VOE 13946173 | Болт | 1 | ||
| 6 | VOE 13945408 | Гайка | 1 | ||
| 6 | VOE 13945408 | Гайка | 1 | ||
| 7 | VOE 4931556 | 4931556 | 1 |
SEE GROUP 56
|
|
| 8 | VOE 4821882 | Clutch | 1 | ||
| 9 | VOE 4940685 | Nipple | 1 |
