Каталог запчастей
-
Volvo Construction Equipment
-
L90 L90
- Attachment locking electrical system.
Attachment locking electrical system. погрузчика колесного Volvo Construction Equipment L90 L90
Attachment locking electrical system. погрузчика колесного Volvo Construction Equipment L90 L90 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2289
Наименование:Attachment locking electrical system.
Версия:91271, 91634

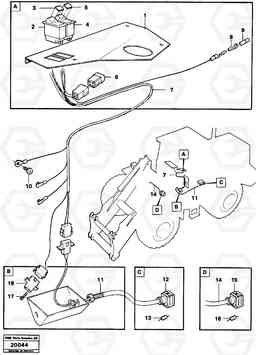

Attachment locking electrical system. L90 L90
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | VOE 11002670 | Шайба | 1 | ||
| 10 | VOE 956092 | Cross recessed screw | 1 | ||
| 10 | VOE 956092 | Cross recessed screw | 1 | ||
| 11 | VOE 11018318 | 11018318 | 1 | ||
| 11 | VOE 11018318 | 11018318 | 1 | ||
| 12 | VOE 6646637 | Contact housing | 1 | ||
| 12 | VOE 6646637 | Contact housing | 1 | ||
| 13 | VOE 4803274 | Диод | 1 | ||
| 13 | VOE 4803274 | Диод | 1 | ||
| 14 | VOE 11018317 | 11018317 | 1 | ||
| 14 | VOE 11018317 | 11018317 | 1 | ||
| 15 | VOE 6646637 | Contact housing | 1 | ||
| 15 | VOE 6646637 | Contact housing | 1 | ||
| 16 | VOE 4803274 | Диод | 1 | ||
| 16 | VOE 4803274 | Диод | 1 | ||
| 17 | VOE 965824 | Cable terminal | 1 | ||
| 17 | VOE 965824 | Cable terminal | 1 | ||
| 18 | VOE 13948995 | Pin housing | 1 | ||
| 18 | VOE 13948995 | Pin housing | 1 | ||
| 2 | VOE 4803806 | 4803806 | 1 | ||
| 3 | VOE 11039585 | Lens | 1 | ||
| 4 | VOE 11039151 | 11039151 | 1 | ||
| 5 | VOE 11039566 | Lens | 1 | ||
| 6 | VOE 4803680 | Diode unit | 1 | ||
| 6 | VOE 4803680 | Diode unit | 1 | ||
| 7 | VOE 11018313 | 11018313 | 1 | ||
| 7 | VOE 11018313 | 11018313 | 1 | ||
| 8 | VOE 965822 | Cable terminal | 1 | ||
| 8 | VOE 965822 | Cable terminal | 1 | ||
| 9 | VOE 13949584 | Изолятор | 1 | ||
| 9 | VOE 13949584 | Картер (корпус) | 1 |
