Каталог запчастей
-
Volvo Construction Equipment
-
L90 L90
- Instrument.
Instrument. погрузчика колесного Volvo Construction Equipment L90 L90
Instrument. погрузчика колесного Volvo Construction Equipment L90 L90 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:23647
Наименование:Instrument.
Версия:91475, 91477, 91480

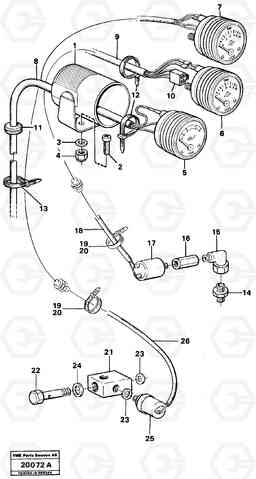

Instrument. L90 L90
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | VOE 11039256 | Instr Casing | 1 | ||
| 10 | VOE 945469 | Rcpt Housing | 1 | ||
| 10 | VOE 945469 | Rcpt Housing | 1 | ||
| 11 | VOE 941269 | Пробка (заглушка) | 1 | ||
| 11 | VOE 941269 | Пробка (заглушка) | 1 | ||
| 12 | VOE 4881438 | Strip Clamp | 1 | ||
| 12 | VOE 4881438 | Strip Clamp | 1 | ||
| 13 | VOE 4881440 | Strip Clamp | 1 | ||
| 13 | VOE 4881440 | Strip Clamp | 1 | ||
| 14 | VOE 4823676 | Clutch | 1 | ||
| 15 | VOE 4821879 | Clutch | 1 | ||
| 16 | VOE 11018456 | Fitting Nut | 1 | ||
| 17 | VOE 866833 | Pressure Sensor | 1 | ||
| 19 | VOE 4881438 | Strip Clamp | 1 | ||
| 19 | VOE 4881438 | Strip Clamp | 1 | ||
| 2 | VOE 967366 | X Rec Screw | 1 | ||
| 20 | VOE 4881440 | Strip Clamp | 1 | ||
| 20 | VOE 4881440 | Strip Clamp | 1 | ||
| 23 | VOE 13945653 | Plane Gasket | 1 | ||
| 23 | VOE 13945653 | Plane Gasket | 1 | ||
| 24 | VOE 948884 | Plane Gasket | 1 | ||
| 24 | VOE 948884 | Plane Gasket | 1 | ||
| 25 | VOE 11039149 | Pressure Sensor | 1 | ||
| 3 | VOE 960137 | Шайба | 1 | ||
| 3 | VOE 960137 | Шайба | 1 | ||
| 4 | VOE 13963103 | Lock nut | 1 | ||
| 4 | VOE 13963103 | Lock nut | 1 | ||
| 5 | VOE 11039079 | Voltmeter | 1 | ||
| 6 | VOE 11707975 | Pressure Gauge | 1 | ||
| 7 | VOE 11039148 | Pressure Gauge | 1 | ||
| 9 | VOE 11041544 | Cable harness | 1 |
