Каталог запчастей
-
Volvo Construction Equipment
-
L120 Volvo BM L120
- Operator's seat
Operator's seat погрузчика колесного Volvo Construction Equipment L120 Volvo BM L120
Operator's seat погрузчика колесного Volvo Construction Equipment L120 Volvo BM L120 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:11347
Наименование:Operator's seat
Версия:

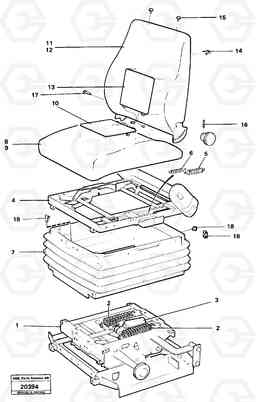

Operator's seat L120 Volvo BM L120
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 11007321 | Seat | 1 | |||
| VOE 11007321 | Seat | 1 | |||
| VOE 11007323 | Operator's Seat | 1 | |||
| VOE 11007323 | Operator's Seat | 1 | |||
| VOE 11998552 | Seat | 1 | |||
| VOE 11998552 | Seat | 1 | |||
| VOE 11998553 | Backrest | 1 | |||
| VOE 11998553 | Backrest | 1 | |||
| VOE 1696529 | Пружина | 1 | |||
| VOE 1696529 | Пружина | 1 | |||
| 1 | VOE 11998542 | Spring Suspension Unit | 1 | ||
| 1 | VOE 11998542 | Spring Suspension Unit | 1 | ||
| 10 | VOE 6795882 | Heater | 1 | ||
| 10 | VOE 6795882 | Heater | 1 | ||
| 11 | VOE 11997010 | Backrest | 1 | ||
| 11 | VOE 11997010 | Backrest | 1 | ||
| 12 | VOE 11996164 | Upholstery | 1 | ||
| 12 | VOE 11996164 | Upholstery | 1 | ||
| 13 | VOE 6795883 | Heater | 1 | ||
| 13 | VOE 6795883 | Heater | 1 | ||
| 14 | VOE 11000165 | Зажим | 1 | ||
| 14 | VOE 11000165 | Зажим | 1 | ||
| 15 | VOE 11000166 | Guide | 1 | ||
| 15 | VOE 11000166 | Guide | 1 | ||
| 16 | VOE 951947 | Spring Pin | 1 | ||
| 16 | VOE 951947 | Spring Pin | 1 | ||
| 17 | VOE 959219 | Allen Hd Screw | 1 | ||
| 18 | VOE 11998811 | Attachment kit | 1 | ||
| 18 | VOE 11998811 | Attachment kit | 1 | ||
| 2 | VOE 6213261 | Пружина | 1 | ||
| 2 | VOE 6213261 | Пружина | 1 | ||
| 3 | VOE 11998543 | Shock Absorber | 1 | ||
| 3 | VOE 11998543 | Shock Absorber | 1 | ||
| 4 | VOE 6213701 | Seat frame | 1 | ||
| 4 | VOE 6213701 | Seat frame | 1 | ||
| 5 | VOE 1518748 | Пружина | 1 |
DELETED
|
|
| 5 | VOE 1518748 | Пружина | 1 |
DELETED
|
|
| 6 | VOE 1518749 | Пружина | 1 |
DELETED
|
|
| 6 | VOE 1518749 | Пружина | 1 |
DELETED
|
|
| 7 | VOE 11998550 | Bellow | 1 | ||
| 7 | VOE 11998550 | Bellow | 1 | ||
| 8 | VOE 11996161 | Seat | 1 | ||
| 8 | VOE 11996161 | Seat | 1 | ||
| 9 | VOE 11996163 | Upholstery | 1 | ||
| 9 | VOE 11996163 | Upholstery | 1 |
