Каталог запчастей
-
Volvo Construction Equipment
-
L70 L70 S/N -7400/ -60500 USA
- Footbrake valve with mountings
Footbrake valve with mountings погрузчика колесного Volvo Construction Equipment L70 L70 S/N -7400/ -60500 USA
Footbrake valve with mountings погрузчика колесного Volvo Construction Equipment L70 L70 S/N -7400/ -60500 USA со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:22635
Наименование:Footbrake valve with mountings
Версия:

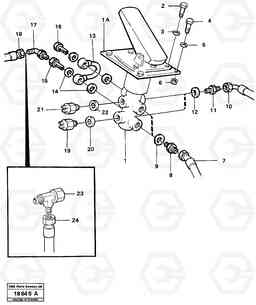

Footbrake valve with mountings L70 L70 S/N -7400/ -60500 USA
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 932637 | Hose assembly | 1 | |||
| VOE 932637 | Hose assembly | 1 | |||
| VOE 11034081 | Клапан | 1 | |||
| VOE 11034081 | Footbrake valve | 1 | |||
| VOE 932193 | Hose assembly | 1 | |||
| VOE 932193 | Hose assembly | 1 | |||
| VOE 932646 | Hose assembly | 1 |
L=3200. LOWER
|
||
| VOE 932646 | Hose assembly | 1 |
L=3200. LOWER
|
||
| VOE 11993537 | Кольцо уплотнительное (О-кольцо) | 1 | |||
| VOE 11993537 | Кольцо уплотнительное (О-кольцо) | 1 | |||
| 1 | VOE 4872210 | Клапан | 1 | ||
| 1 | VOE 4872210 | Footbrake valve | 1 | ||
| 10 | VOE 932137 | Hose assembly | 1 |
L=2500. UPPER
|
|
| 10 | VOE 932137 | Hose assembly | 1 |
L=2500. UPPER
|
|
| 11 | VOE 4949570 | Nipple | 1 | ||
| 11 | VOE 4949570 | Nipple | 1 | ||
| 12 | VOE 948883 | Plane gasket | 1 | ||
| 12 | VOE 948883 | Plane gasket | 1 | ||
| 13 | VOE 4953502 | Трубка | 1 | ||
| 13 | VOE 4953502 | Трубка | 1 | ||
| 14 | VOE 13947622 | Plane gasket | 1 | ||
| 14 | VOE 13947622 | Plane gasket | 1 | ||
| 15 | VOE 4953504 | Hollow screw | 1 | ||
| 16 | VOE 941686 | Hollow screw | 1 | ||
| 16 | VOE 941686 | Hollow screw | 1 | ||
| 17 | VOE 931232 | Nipple | 1 | ||
| 17 | VOE 931232 | Nipple | 1 | ||
| 18 | VOE 932192 | Hose assembly | 1 | ||
| 19 | VOE 4881371 | Pressure sensor | 1 | ||
| 1A | VOE 4936658 | 4936658 | 1 | ||
| 2 | VOE 955297 | Винт шестигранник | 1 | ||
| 2 | VOE 955297 | Винт шестигранник | 1 | ||
| 20 | VOE 947083 | Прокладка | 1 | ||
| 20 | VOE 947083 | Прокладка | 1 | ||
| 21 | VOE 4803620 | Brake light switch | 1 | ||
| 21 | VOE 4803620 | Brake light switch | 1 | ||
| 22 | VOE 947083 | Прокладка | 1 | ||
| 22 | VOE 947083 | Прокладка | 1 | ||
| 23 | VOE 4821861 | Nipple | 1 | ||
| 23 | VOE 4821861 | Nipple | 1 | ||
| 24 | VOE 13932796 | Hose assembly | 1 |
SEE GROUP 46
|
|
| 24 | VOE 13932796 | Hose assembly | 1 |
SEE GROUP 46
|
|
| 3 | VOE 13941907 | Шайба пружинная | 1 | ||
| 3 | VOE 13941907 | Шайба | 1 | ||
| 4 | VOE 955297 | Винт шестигранник | 1 | ||
| 4 | VOE 955297 | Винт шестигранник | 1 | ||
| 5 | VOE 13941907 | Шайба пружинная | 1 | ||
| 5 | VOE 13941907 | Шайба | 1 | ||
| 6 | VOE 955782 | Hexagon nut | 1 | ||
| 6 | VOE 955782 | Hexagon nut | 1 | ||
| 7 | VOE 932193 | Hose assembly | 1 | ||
| 7 | VOE 932193 | Hose assembly | 1 | ||
| 8 | VOE 4881644 | Nipple | 1 | ||
| 8 | VOE 4881644 | Nipple | 1 | ||
| 9 | VOE 948883 | Plane gasket | 1 | ||
| 9 | VOE 948883 | Plane gasket | 1 |
