Каталог запчастей
-
Volvo Construction Equipment
-
A20 VOLVO BM A20
- Hydraulic brake system, trailer
Hydraulic brake system, trailer самосвала cочлененного Volvo Construction Equipment A20 VOLVO BM A20
Hydraulic brake system, trailer самосвала cочлененного Volvo Construction Equipment A20 VOLVO BM A20 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:17764
Наименование:Hydraulic brake system, trailer
Версия:6 X 4, 6 X 6

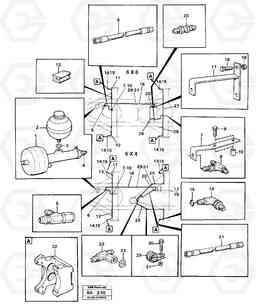

Hydraulic brake system, trailer A20 VOLVO BM A20
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 11996160 | Крышка | 1 | |||
| VOE 11996160 | Cap | 1 | |||
| 11 | VOE 11053011 | Brake Pipe | 1 | ||
| 11 | VOE 11053011 | Brake Pipe | 1 | ||
| 12 | VOE 11053013 | Brake Pipe | 1 | ||
| 12 | VOE 11053013 | Brake Pipe | 1 | ||
| 13 | VOE 4941475 | Rubber Block | 1 | ||
| 13 | VOE 4941475 | Rubber Block | 1 | ||
| 14 | VOE 4931464 | Clutch | 1 | ||
| 14 | VOE 4931464 | Clutch | 1 | ||
| 15 | VOE 4931579 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 15 | VOE 4931579 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 16 | VOE 11053010 | Brake Pipe | 1 | ||
| 18 | VOE 13965191 | Flange screw | 1 | ||
| 18 | VOE 13965191 | Болт | 1 | ||
| 19 | VOE 971099 | Flange Lock Nut | 1 | ||
| 19 | VOE 971099 | Flange Lock Nut | 1 | ||
| 2 | VOE 11063047 | Reservoir | 1 |
SER NO - 1802
|
|
| 2 | VOE 11063047 | Reservoir | 1 |
SER NO - 1802
|
|
| 20 | VOE 4880280 | Bhd Grommet | 1 | ||
| 20 | VOE 4880280 | Bhd Grommet | 1 | ||
| 21 | VOE 11112876 | Brake Hose | 1 | ||
| 21 | VOE 11112876 | Brake Hose | 1 | ||
| 22 | VOE 13955897 | Шайба | 1 | ||
| 22 | VOE 13955897 | Шайба | 1 | ||
| 23 | VOE 4931463 | Clutch | 1 | ||
| 24 | VOE 11053009 | Brake Pipe | 1 | ||
| 25 | VOE 11053012 | Brake Pipe | 1 | ||
| 26 | VOE 11053016 | Brake Pipe | 1 | ||
| 26 | VOE 11053016 | Brake Pipe | 1 | ||
| 27 | VOE 11053014 | Brake Pipe | 1 | ||
| 27 | VOE 11053014 | Brake Pipe | 1 | ||
| 28 | VOE 11053015 | Brake Pipe | 1 | ||
| 28 | VOE 11053015 | Brake Pipe | 1 | ||
| 29 | VOE 952624 | Зажим | 1 | ||
| 29 | VOE 952624 | Зажим | 1 | ||
| 3 | VOE 13947627 | Plane Gasket | 1 | ||
| 3 | VOE 13947627 | Plane Gasket | 1 | ||
| 30 | VOE 13946934 | Болт | 1 | ||
| 30 | VOE 13946934 | Болт | 1 | ||
| 31 | VOE 13949278 | Flange Lock Nut | 1 | ||
| 31 | VOE 13949278 | Flange Lock Nut | 1 | ||
| 4 | VOE 11043007 | Nipple | 1 | ||
| 4 | VOE 11043007 | Nipple | 1 | ||
| 5 | VOE 4931462 | Clutch | 1 | ||
| 6 | VOE 11112876 | Brake Hose | 1 | ||
| 6 | VOE 11112876 | Brake Hose | 1 | ||
| 8 | VOE 11043008 | T-nipple | 1 | ||
| 8 | VOE 11043008 | T-nipple | 1 | ||
| 9 | VOE 13947760 | Болт | 1 | ||
| 9 | VOE 13947760 | Flange screw | 1 |
