Каталог запчастей
-
Volvo Construction Equipment
-
A20 VOLVO BM A20
- Fuel pipes, injectors
Fuel pipes, injectors самосвала cочлененного Volvo Construction Equipment A20 VOLVO BM A20
Fuel pipes, injectors самосвала cочлененного Volvo Construction Equipment A20 VOLVO BM A20 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:52042
Наименование:Fuel pipes, injectors
Версия:

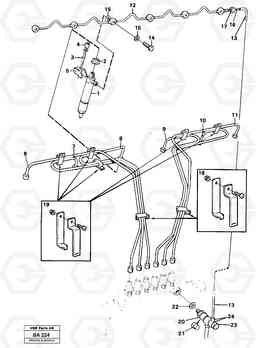

Fuel pipes, injectors A20 VOLVO BM A20
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 10 | VOE 421493 | Delivery pipe | 1 | ||
| 11 | VOE 421494 | Delivery pipe | 1 | ||
| 12 | VOE 471605 | Leak-off line | 1 | ||
| 12 | VOE 471605 | Leak-off line | 1 | ||
| 13 | VOE 848523 | Leak-off line | 1 | ||
| 14 | VOE 7074033 | Hollow screw | 1 | ||
| 14 | VOE 7074033 | Hollow screw | 1 | ||
| 15 | VOE 947620 | Прокладка | 1 | ||
| 15 | VOE 947620 | Прокладка | 1 | ||
| 16 | VOE 956966 | Ferrule | 1 | ||
| 16 | VOE 956966 | Ferrule | 1 | ||
| 17 | VOE 956980 | Fitting nut | 1 | ||
| 17 | VOE 956980 | Fitting nut | 1 | ||
| 18 | VOE 8194352 | Зажим | 1 | ||
| 18 | VOE 8194352 | Зажим | 1 | ||
| 19 | VOE 8194351 | Зажим | 1 | ||
| 19 | VOE 8194351 | Зажим | 1 | ||
| 2 | VOE 469455 | Кольцо уплотнительное | 1 | ||
| 2 | VOE 469455 | Кольцо уплотнительное | 1 | ||
| 20 | VOE 7035096 | Overflow valve | 1 |
E PROD
|
|
| 20 | VOE 7035096 | Overflow valve | 1 |
E PROD
|
|
| 20 | VOE 479775 | Overflow valve | 1 |
L PROD
|
|
| 20 | VOE 479775 | Overflow valve | 1 |
L PROD
|
|
| 21 | VOE 238614 | Клапан | 1 | ||
| 21 | VOE 238614 | Клапан | 1 | ||
| 22 | VOE 13969011 | Прокладка | 1 | ||
| 22 | VOE 13969011 | Прокладка | 1 | ||
| 23 | VOE 7074033 | Hollow screw | 1 | ||
| 23 | VOE 7074033 | Hollow screw | 1 | ||
| 24 | VOE 947620 | Прокладка | 1 | ||
| 24 | VOE 947620 | Прокладка | 1 | ||
| 3 | VOE 1545022 | Шпилька | 1 | ||
| 4 | VOE 13971095 | Flange nut | 1 | ||
| 4 | VOE 13971095 | Flange nut | 1 | ||
| 5 | VOE 469797 | Вилка | 1 | ||
| 5 | VOE 469797 | Nozzle retainer | 1 | ||
| 6 | VOE 471720 | Delivery pipe | 1 | ||
| 7 | VOE 471721 | Delivery pipe | 1 | ||
| 8 | VOE 471722 | Delivery pipe | 1 | ||
| 9 | VOE 421492 | Delivery pipe | 1 |
