Каталог запчастей
-
Volvo Construction Equipment
-
A20 VOLVO BM A20
- Electrical system,tractor
Electrical system,tractor самосвала cочлененного Volvo Construction Equipment A20 VOLVO BM A20
Electrical system,tractor самосвала cочлененного Volvo Construction Equipment A20 VOLVO BM A20 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:54003
Наименование:Electrical system,tractor
Версия:

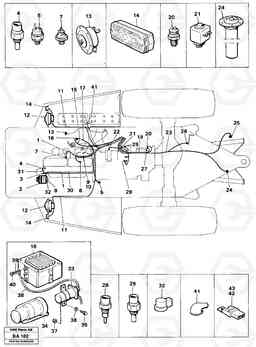

Electrical system,tractor A20 VOLVO BM A20
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 11061821 | Cable harness | 1 |
CAB 1700 -
|
||
| VOE 11061335 | 11061335 | 1 |
SER NO 1747 - 2740
|
||
| VOE 11062138 | 11062138 | 1 |
SER NO 2741 -
|
||
| 1 | VOE 4942764 | 4942764 | 1 | ||
| 10 | VOE 947668 | Зажим | 1 | ||
| 10 | VOE 947668 | Зажим | 1 | ||
| 11 | VOE 4942746 | 4942746 | 1 | ||
| 14 | VOE 4803565 | Lamp | 1 | ||
| 15 | VOE 4942787 | El Cable | 1 |
CAB - 1290
|
|
| 16 | VOE 240938 | Fuse box | 1 | ||
| 16 | VOE 240938 | Fuse box | 1 | ||
| 17 | VOE 4942786 | El Cable | 1 | ||
| 19 | VOE 11061038 | 11061038 | 1 |
SER NO - 1746
|
|
| 20 | VOE 4880804 | Induction sensor | 1 |
SEE GROUP 46
|
|
| 20 | VOE 4880804 | Induction sensor | 1 |
SEE GROUP 46
|
|
| 21 | VOE 11992401 | Встроенный клапан в сборе | 1 | ||
| 21 | VOE 11992401 | Встроенный клапан в сборе | 1 | ||
| 22 | VOE 4780941 | Induction sensor | 1 | ||
| 22 | VOE 4780941 | Induction sensor | 1 | ||
| 23 | VOE 4942743 | Cable harness | 1 |
CAB - 1699
|
|
| 24 | VOE 4803666 | Combined tank unit | 1 | ||
| 24 | VOE 4803666 | Combined tank unit | 1 | ||
| 25 | VOE 1589338 | Клапан | 1 | ||
| 25 | VOE 1589338 | Встроенный клапан в сборе | 1 | ||
| 26 | VOE 1578102 | Contact | 1 | ||
| 27 | VOE 1578657 | 1578657 | 1 | ||
| 28 | VOE 4803620 | Brake light switch | 1 | ||
| 28 | VOE 4803620 | Brake light switch | 1 | ||
| 29 | VOE 4803686 | 4803686 | 1 |
TRANSM.
|
|
| 3 | VOE 1578698 | Tachometer sensor | 1 |
SEE GROUP 21
|
|
| 3 | VOE 1578698 | Tachometer sensor | 1 |
SEE GROUP 21
|
|
| 30 | VOE 4821292 | Cable tie | 1 | ||
| 30 | VOE 4821292 | Cable tie | 1 | ||
| 31 | VOE 13945611 | Зажим | 1 | ||
| 31 | VOE 13945611 | Зажим | 1 | ||
| 32 | VOE 1234326 | Protecting casing | 1 | ||
| 33 | VOE 1577376 | Реле | 1 |
RE20
|
|
| 33 | VOE 1577376 | Реле | 1 |
RE20
|
|
| 34 | VOE 11000258 | Крышка | 1 | ||
| 34 | VOE 11000258 | Крышка | 1 | ||
| 35 | VOE 13955247 | Болт | 1 | ||
| 35 | VOE 13955247 | Болт | 1 | ||
| 36 | VOE 13940090 | Шайба | 1 | ||
| 36 | VOE 13940090 | Шайба | 1 | ||
| 37 | VOE 13963104 | Lock nut | 1 | ||
| 37 | VOE 13963104 | Lock nut | 1 | ||
| 38 | VOE 4942790 | El Cable | 1 | ||
| 39 | VOE 942767 | Toothed washer | 1 | ||
| 39 | VOE 942767 | Toothed washer | 1 | ||
| 4 | VOE 4803719 | 4803719 | 1 |
SEE GROUP 26
|
|
| 40 | VOE 7017624 | Гайка | 1 | ||
| 40 | VOE 7017624 | Hexagon nut | 1 | ||
| 41 | VOE 673580 | Адаптер | 1 | ||
| 42 | VOE 11039490 | Fuse holder | 1 | ||
| 42 | VOE 11039490 | Fuse holder | 1 | ||
| 43 | VOE 13969160 | Fuse | 1 |
5A
|
|
| 43 | VOE 13969160 | Fuse | 1 |
5A
|
|
| 5 | VOE 4803620 | Brake light switch | 1 | ||
| 5 | VOE 4803620 | Brake light switch | 1 | ||
| 6 | VOE 4881303 | Pressure drop indicator | 1 |
SEE GROUP 25
|
|
| 7 | VOE 1606877 | 1606877 | 1 |
SEE GROUP 21
|
|
| 8 | VOE 4942788 | El Cable | 1 | ||
| 9 | VOE 946440 | Flange screw | 1 | ||
| 9 | VOE 946440 | Flange screw | 1 |
