A20 VOLVO BM A20
- Operator's seat, air suspensioned and heated
Operator's seat, air suspensioned and heated самосвала cочлененного Volvo Construction Equipment A20 VOLVO BM A20
Operator's seat, air suspensioned and heated самосвала cочлененного Volvo Construction Equipment A20 VOLVO BM A20 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:62098
Наименование:Operator's seat, air suspensioned and heated
Версия:92174

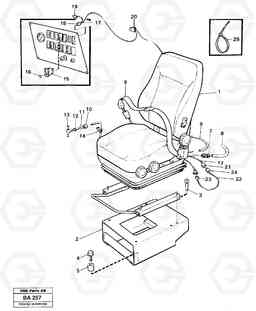

Operator's seat, air suspensioned and heated A20 VOLVO BM A20
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 11061995 | Junction | 1 | |||
| VOE 11997242 | Bulb | 1 | |||
| 1 | VOE 11058202 | Operator's Seat | 1 | ||
| 10 | VOE 954356 | Fitting nut | 1 | ||
| 10 | VOE 954356 | Fitting nut | 1 | ||
| 11 | VOE 954364 | Ferrule | 1 | ||
| 11 | VOE 954364 | Ferrule | 1 | ||
| 12 | VOE 944717 | Втулка (распорная) | 1 | ||
| 12 | VOE 944717 | Втулка (распорная) | 1 | ||
| 13 | VOE 180084 | T-nipple | 1 |
BEFINTLIG/EXISTING
|
|
| 13 | VOE 180084 | T-nipple | 1 |
BEFINTLIG/EXISTING
|
|
| 14 | VOE 952628 | Зажим | 1 | ||
| 14 | VOE 952628 | Зажим | 1 | ||
| 15 | VOE 4803455 | Переключатель | 1 | ||
| 16 | VOE 11039472 | Lens | 1 | ||
| 17 | VOE 11062343 | 11062343 | 1 |
(11061177)
|
|
| 18 | VOE 4803454 | Receptacle housing | 1 | ||
| 18 | VOE 4803454 | Receptacle housing | 1 | ||
| 20 | VOE 958209 | Изолятор | 1 | ||
| 20 | VOE 958209 | Картер (корпус) | 1 | ||
| 21 | VOE 13958210 | Receptacle housing | 1 | ||
| 21 | VOE 13958210 | Receptacle housing | 1 | ||
| 22 | VOE 11061773 | 11061773 | 1 | ||
| 23 | VOE 13948995 | Pin housing | 1 | ||
| 23 | VOE 13948995 | Pin housing | 1 | ||
| 24 | VOE 958209 | Изолятор | 1 | ||
| 24 | VOE 958209 | Картер (корпус) | 1 | ||
| 25 | VOE 4821292 | Cable tie | 1 | ||
| 25 | VOE 4821292 | Cable tie | 1 | ||
| 3 | VOE 13967630 | Allen Hd Screw | 1 | ||
| 4 | VOE 13965185 | Screw | 1 | ||
| 4 | VOE 13965185 | Болт | 1 | ||
| 5 | VOE 4943026 | Spacer sleeve | 1 | ||
| 5 | VOE 4943026 | Spacer sleeve | 1 | ||
| 6 | VOE 11005808 | Hip Belt | 1 | ||
| 7 | VOE 6626875 | Joint nipple | 1 | ||
| 8 | VOE 13945460 | Plastic pipe | 1 |
L = 1800
|
|
| 8 | VOE 13945460 | Plastic pipe | 1 |
L = 1800
|
|
| 9 | VOE 13945460 | Plastic pipe | 1 |
L = 1700
|
|
| 9 | VOE 13945460 | Plastic pipe | 1 |
L = 1700
|
