Каталог запчастей
-
Volvo Construction Equipment
-
L70 L70 S/N 7401- / 60501- USA
- Comfort drive control
Comfort drive control погрузчика колесного Volvo Construction Equipment L70 L70 S/N 7401- / 60501- USA
Comfort drive control погрузчика колесного Volvo Construction Equipment L70 L70 S/N 7401- / 60501- USA со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:40893
Наименование:Comfort drive control
Версия:90552

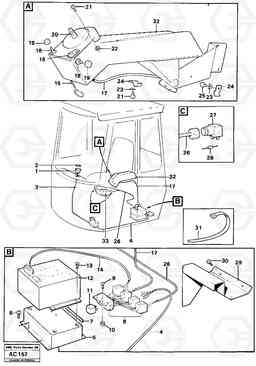

Comfort drive control L70 L70 S/N 7401- / 60501- USA
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | VOE 4803464 | Переключатель | 1 | ||
| 10 | VOE 955780 | Hexagon nut | 1 | ||
| 10 | VOE 955780 | Hexagon nut | 1 | ||
| 11 | VOE 4786690 | Реле | 1 | ||
| 11 | VOE 4786690 | Реле | 1 | ||
| 12 | VOE 11018329 | Control Unit | 1 | ||
| 13 | VOE 956074 | Cross recessed screw | 1 | ||
| 13 | VOE 956074 | Cross recessed screw | 1 | ||
| 14 | VOE 11018328 | Cable harness | 1 | ||
| 15 | VOE 11041628 | Cable harness | 1 | ||
| 16 | VOE 11039120 | 11039120 | 1 | ||
| 17 | VOE 11041627 | Cable harness | 1 | ||
| 18 | VOE 4803549 | 4803549 | 1 | ||
| 19 | VOE 11992216 | Knob | 1 | ||
| 2 | VOE 4803491 | Lens | 1 | ||
| 20 | VOE 11048027 | Control lever | 1 | ||
| 21 | VOE 956063 | Cross recessed screw | 1 | ||
| 21 | VOE 956063 | Cross recessed screw | 1 | ||
| 22 | VOE 955779 | Hexagon nut | 1 | ||
| 22 | VOE 955779 | Hexagon nut | 1 | ||
| 23 | VOE 13949607 | Шайба | 1 | ||
| 23 | VOE 13949607 | Шайба | 1 | ||
| 24 | VOE 952629 | Зажим | 1 | ||
| 24 | VOE 952629 | Зажим | 1 | ||
| 25 | VOE 956092 | Cross recessed screw | 1 | ||
| 25 | VOE 956092 | Cross recessed screw | 1 | ||
| 26 | VOE 11041653 | Cable harness | 1 | ||
| 27 | VOE 6646637 | Contact housing | 1 | ||
| 27 | VOE 6646637 | Contact housing | 1 | ||
| 28 | VOE 4803274 | Диод | 1 | ||
| 28 | VOE 4803274 | Диод | 1 | ||
| 29 | VOE 11018341 | Protection | 1 | ||
| 3 | VOE 11041563 | Cable harness | 1 | ||
| 30 | VOE 955143 | Cross recessed screw | 1 | ||
| 30 | VOE 955143 | Cross recessed screw | 1 | ||
| 31 | VOE 4881440 | Cable tie | 1 | ||
| 31 | VOE 4881440 | Cable tie | 1 | ||
| 4 | VOE 11041564 | Cable harness | 1 | ||
| 5 | VOE 11023416 | Relay box | 1 | ||
| 6 | VOE 955143 | Cross recessed screw | 1 | ||
| 6 | VOE 955143 | Cross recessed screw | 1 | ||
| 7 | VOE 11018261 | Decal | 1 | ||
| 8 | VOE 11023432 | Cable harness | 1 | ||
| 9 | VOE 956075 | Cross recessed screw | 1 | ||
| 9 | VOE 956075 | Cross recessed screw | 1 |
