Каталог запчастей
-
Volvo Construction Equipment
-
L50 L50 S/N 6401- / 60301- USA
- Differential lock controls
Differential lock controls погрузчика колесного Volvo Construction Equipment L50 L50 S/N 6401- / 60301- USA
Differential lock controls погрузчика колесного Volvo Construction Equipment L50 L50 S/N 6401- / 60301- USA со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:38832
Наименование:Differential lock controls
Версия:91290

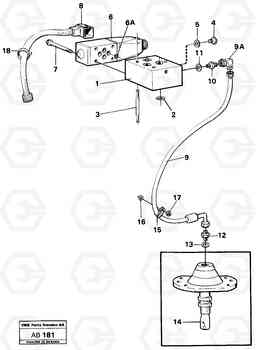

Differential lock controls L50 L50 S/N 6401- / 60301- USA
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 13974888 | Control Rod | 1 |
L=170, ALT
|
||
| VOE 13974888 | Control Rod | 1 |
L=170, ALT
|
||
| VOE 13974896 | Control Rod | 1 |
L=220, ALT
|
||
| VOE 13974896 | Control Rod | 1 |
L=220, ALT
|
||
| VOE 965930 | Control Rod | 1 |
L=270, ALT
|
||
| VOE 965930 | Control Rod | 1 |
L=270, ALT
|
||
| VOE 13965938 | Control Rod | 1 |
L=370, ALT
|
||
| VOE 13965938 | Control Rod | 1 |
L=370, ALT
|
||
| VOE 11003548 | Встроенный клапан в сборе | 1 | |||
| VOE 11003548 | Встроенный клапан в сборе | 1 | |||
| VOE 13974945 | Control Rod | 1 |
L=320, ALT
|
||
| VOE 13974945 | Control Rod | 1 |
L=320, ALT
|
||
| 1 | VOE 4974291 | Connection board | 1 | ||
| 1 | VOE 4974291 | Connection board | 1 | ||
| 10 | VOE 13944524 | Nipple | 1 | ||
| 10 | VOE 13944524 | Nipple | 1 | ||
| 11 | VOE 14013067 | Sealing washer | 1 | ||
| 11 | VOE 14013067 | Sealing washer | 1 | ||
| 12 | VOE 941754 | Nipple | 1 | ||
| 12 | VOE 941754 | Nipple | 1 | ||
| 13 | VOE 13945653 | Plane Gasket | 1 | ||
| 13 | VOE 13945653 | Plane Gasket | 1 | ||
| 15 | VOE 952629 | Зажим | 1 | ||
| 15 | VOE 952629 | Зажим | 1 | ||
| 16 | VOE 955892 | Шайба | 1 | ||
| 16 | VOE 955892 | Шайба | 1 | ||
| 17 | VOE 13955781 | Гайка | 1 | ||
| 17 | VOE 13955781 | Гайка | 1 | ||
| 18 | VOE 4881440 | Strip Clamp | 1 | ||
| 18 | VOE 4881440 | Strip Clamp | 1 | ||
| 2 | VOE 13960168 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 2 | VOE 13960168 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 3 | VOE 974841 | Control rod | 1 |
L=120
|
|
| 3 | VOE 974841 | Control rod | 1 |
L=120
|
|
| 4 | VOE 929357 | Пробка (заглушка) | 1 | ||
| 4 | VOE 929357 | Пробка (заглушка) | 1 | ||
| 5 | VOE 14013067 | Sealing washer | 1 | ||
| 5 | VOE 14013067 | Sealing washer | 1 | ||
| 6 | VOE 11993636 | Magnet | 1 | ||
| 6 | VOE 11993636 | Magnet | 1 | ||
| 6A | VOE 11993637 | Sealing Kit | 1 | ||
| 6A | VOE 11993637 | Sealing Kit | 1 | ||
| 7 | VOE 959193 | Allen Hd Screw | 1 | ||
| 7 | VOE 959193 | Винт шестигранник (торцевой ключ) | 1 | ||
| 8 | VOE 11003122 | Cable harness | 1 | ||
| 8 | VOE 11003122 | Cable harness | 1 | ||
| 9 | VOE 932352 | Hose assembly | 1 |
L=750
|
|
| 9 | VOE 932352 | Hose assembly | 1 |
L=750
|
|
| 9A | VOE 13945357 | Elbow nipple | 1 | ||
| 9A | VOE 13945357 | Elbow nipple | 1 |
