Каталог запчастей
-
Volvo Construction Equipment
-
L50 L50 S/N 6401- / 60301- USA
- Sign plates and transfersusa
Sign plates and transfersusa погрузчика колесного Volvo Construction Equipment L50 L50 S/N 6401- / 60301- USA
Sign plates and transfersusa погрузчика колесного Volvo Construction Equipment L50 L50 S/N 6401- / 60301- USA со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:65977
Наименование:Sign plates and transfersusa
Версия:

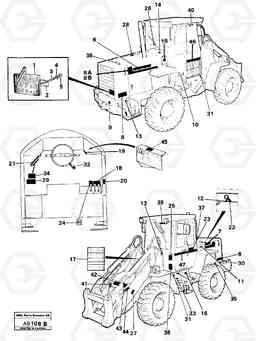

Sign plates and transfersusa L50 L50 S/N 6401- / 60301- USA
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 11025622 | Decal | 1 |
RH,MICHIGAN,SER NO 60574-
|
||
| VOE 11005844 | Decal | 1 |
EL.DISTR.UNIT
|
||
| VOE 13905650 | Drive screw | 1 | |||
| VOE 13905650 | Drive screw | 1 | |||
| VOE 941671 | Blind rivet | 1 | |||
| VOE 941671 | Blind rivet | 1 | |||
| VOE 941671 | Blind rivet | 1 | |||
| VOE 941671 | Blind rivet | 1 | |||
| VOE 11090390 | Decal | 1 |
LH,MICHIGAN,SER NO 60574-
|
||
| 1 | VOE 11025666 | Nameplate | 1 |
VME
|
|
| 10 | VOE 4932840 | Decal | 1 |
TRANSM. OIL FILL
|
|
| 10 | VOE 4932840 | Decal | 1 |
TRANSM. OIL FILL
|
|
| 11 | VOE 4952167 | Decal | 1 |
AIR CLEANER
|
|
| 11 | VOE 4952167 | Decal | 1 |
AIR CLEANER
|
|
| 12 | VOE 11003865 | Decal | 1 |
NON-FREEZING SOLUTION
|
|
| 12 | VOE 11003865 | Decal | 1 |
NON-FREEZING SOLUTION
|
|
| 13 | VOE 11004094 | Decal | 1 |
LIFTING HOOK
|
|
| 13 | VOE 11004094 | Decal | 1 |
LIFTING HOOK
|
|
| 14 | VOE 11003865 | Decal | 1 |
OIL FILL
|
|
| 14 | VOE 11003865 | Decal | 1 |
OIL FILL
|
|
| 15 | VOE 11003865 | Decal | 1 |
OIL LEVEL
|
|
| 15 | VOE 11003865 | Decal | 1 |
OIL LEVEL
|
|
| 16 | VOE 11003865 | Decal | 1 |
WARNING BRAKE PRESSURE
|
|
| 16 | VOE 11003865 | Decal | 1 |
WARNING BRAKE PRESSURE
|
|
| 17 | VOE 11090032 | Decal | 1 |
SERIO HOSES
|
|
| 18 | VOE 11705579 | Decal | 1 |
HYDRAULIC VALVE
|
|
| 18 | VOE 11705579 | Decal | 1 |
HYDRAULIC VALVE
|
|
| 19 | VOE 4948030 | Decal | 1 |
24 VOLT
|
|
| 19 | VOE 4948030 | Decal | 1 |
24 VOLT
|
|
| 2 | VOE 11013037 | Profile | 1 | ||
| 20 | VOE 11018246 | Decal | 1 |
RESCUE WINDOW
|
|
| 21 | VOE 11005765 | Decal | 1 |
EL.DISTR.UNIT
|
|
| 22 | VOE 4952181 | Decal | 1 |
"THE COOLER IS FILLED ."
|
|
| 22 | VOE 4952181 | Decal | 1 |
"THE COOLER IS FILLED ."
|
|
| 23 | VOE 4854501 | Decal | 1 |
"AUTOMATIC POWER SHIFT"
|
|
| 23 | VOE 4854501 | Decal | 1 |
"AUTOMATIC POWER SHIFT"
|
|
| 24 | VOE 11018035 | Decal | 1 | ||
| 25 | VOE 11003871 | Decal | 1 |
"FILTER REPLACEMENTS"
|
|
| 26 | VOE 13935030 | Decal | 1 |
"IN EMERGENCY..."
|
|
| 26 | VOE 13935030 | Decal | 1 |
"IN EMERGENCY..."
|
|
| 27 | VOE 11027566 | Warning decal | 1 |
"DO NOT PAS..."
|
|
| 27 | VOE 11027566 | Warning decal | 1 |
"DO NOT PAS..."
|
|
| 28 | VOE 11018187 | Decal | 1 |
"WARNING BRAKE FLUID..."
|
|
| 28 | VOE 11018187 | Decal | 1 |
"WARNING BRAKE FLUID..."
|
|
| 29 | VOE 4952166 | Decal | 1 |
"WARNING Brake system..."
|
|
| 29 | VOE 4952166 | Decal | 1 |
"WARNING Brake system..."
|
|
| 3 | VOE 11018041 | установочный винт | 1 | ||
| 3 | VOE 11018041 | установочный винт | 1 | ||
| 30 | VOE 4952176 | Decal | 1 |
"WARNING Do not connect."
|
|
| 30 | VOE 4952176 | Decal | 1 |
"WARNING Do not connect."
|
|
| 31 | VOE 4952172 | Decal | 1 |
"WARNING No room for a.."
|
|
| 31 | VOE 4952172 | Decal | 1 |
"WARNING No room for a.."
|
|
| 32 | VOE 4952170 | Decal | 1 |
"WARNING DISCONNECT..."
|
|
| 32 | VOE 4952170 | Decal | 1 |
"WARNING DISCONNECT..."
|
|
| 33 | VOE 4952169 | Decal | 1 |
"WARNING DISCONNECT..."
|
|
| 33 | VOE 4952169 | Decal | 1 |
"WARNING DISCONNECT..."
|
|
| 34 | VOE 4843571 | Decal | 1 |
"WARNING Read operators."
|
|
| 34 | VOE 4843571 | Decal | 1 |
"WARNING Read operators."
|
|
| 35 | VOE 4843569 | Decal | 1 |
"WARNING Do not turn..."
|
|
| 35 | VOE 4843569 | Decal | 1 |
"WARNING Do not turn..."
|
|
| 36 | VOE 13935001 | Warning decal | 1 |
"WARNING ROTATING FAN"
|
|
| 36 | VOE 13935001 | Warning decal | 1 |
"WARNING ROTATING FAN"
|
|
| 37 | VOE 11013034 | Decal | 1 |
"WARNING NO ETHER..."
|
|
| 37 | VOE 11013034 | Decal | 1 |
"WARNING NO ETHER..."
|
|
| 38 | VOE 11002494 | Decal | 1 |
LUBRICATION INSTRUCTIONS
|
|
| 39 | VOE 11003868 | Decal | 1 |
INSTRUMENT PANEL
|
|
| 4 | VOE 955892 | Шайба | 1 | ||
| 4 | VOE 955892 | Шайба | 1 | ||
| 40 | VOE 11005886 | Approval label | 1 |
CAB 60469 - 60478
|
|
| 41 | VOE 11003180 | Sign | 1 | ||
| 42 | VOE 11003178 | Sign | 1 | ||
| 43 | VOE 11003179 | Sign | 1 | ||
| 44 | VOE 11003181 | Sign | 1 | ||
| 45 | VOE 11002915 | Decal | 1 | ||
| 46 | VOE 11090292 | Decal | 1 |
SER NO 60574-
|
|
| 47 | VOE 11090410 | Decal | 1 |
SER NO 60574-
|
|
| 5 | VOE 13963105 | Lock nut | 1 | ||
| 5 | VOE 13963105 | Lock nut | 1 | ||
| 6 | VOE 4898693 | Decal | 1 |
"MICHIGAN",SER NO -60573
|
|
| 7 | VOE 4898694 | Decal | 1 |
"MICHIGAN",SER NO -60573
|
|
| 8 | VOE 4853176 | Decal | 1 |
"L50",SER NO -60573
|
|
| 8A | VOE 11090287 | Decal | 1 |
RH,L50, SER NO 60574-
|
|
| 8B | VOE 11090288 | Decal | 1 |
LH,L50, SER NO 60574-
|
|
| 9 | VOE 11003865 | Decal | 1 |
"DIESEL"
|
|
| 9 | VOE 11003865 | Decal | 1 |
"DIESEL"
|
