Каталог запчастей
-
Volvo Construction Equipment
-
L50 L50 S/N 6401- / 60301- USA
- Controls for hydraulic valve 5:th and 6:th function
Controls for hydraulic valve 5:th and 6:th function погрузчика колесного Volvo Construction Equipment L50 L50 S/N 6401- / 60301- USA
Controls for hydraulic valve 5:th and 6:th function погрузчика колесного Volvo Construction Equipment L50 L50 S/N 6401- / 60301- USA со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:99321
Наименование:Controls for hydraulic valve 5:th and 6:th function
Версия:90872

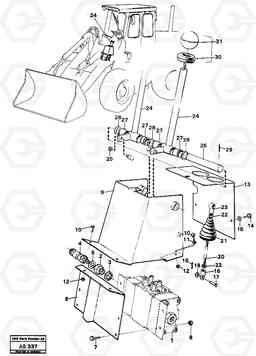

Controls for hydraulic valve 5:th and 6:th function L50 L50 S/N 6401- / 60301- USA
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 13949574 | Кольцо уплотнительное (О-кольцо) | 1 |
(949574)
|
||
| VOE 13949574 | Кольцо уплотнительное (О-кольцо) | 1 |
(949574)
|
||
| 1 | VOE 4881384 | Hydraulic valve | 1 | ||
| 1 | VOE 4881384 | Hydraulic valve | 1 | ||
| 10 | VOE 13970947 | Винт шестигранник | 1 |
(970947)
|
|
| 10 | VOE 13970947 | Винт шестигранник | 1 |
(970947)
|
|
| 11 | VOE 976945 | Шайба | 1 |
(960148)
|
|
| 11 | VOE 976945 | Шайба | 1 |
(960148)
|
|
| 12 | VOE 971071 | Hexagon nut | 1 | ||
| 12 | VOE 971071 | Hexagon nut | 1 | ||
| 14 | VOE 13955271 | Болт | 1 |
(955271)
|
|
| 14 | VOE 13955271 | Болт | 1 |
(955271)
|
|
| 15 | VOE 960139 | Шайба | 1 | ||
| 15 | VOE 960139 | Шайба | 1 | ||
| 16 | VOE 4948317 | Connecting link | 1 | ||
| 16 | VOE 4948317 | Connecting link | 1 | ||
| 17 | VOE 13964823 | Болт | 1 |
(964823)
|
|
| 17 | VOE 13964823 | Болт | 1 |
(964823)
|
|
| 18 | VOE 13940090 | Шайба | 1 |
(940090)
|
|
| 18 | VOE 13940090 | Шайба | 1 |
(940090)
|
|
| 19 | VOE 13964947 | Cotter Pin | 1 | ||
| 20 | VOE 7016671 | Control Rod | 1 | ||
| 21 | VOE 4951016 | Sealing bellows | 1 | ||
| 21 | VOE 4951016 | Sealing bellows | 1 | ||
| 22 | VOE 13955781 | Гайка | 1 |
(955781)
|
|
| 22 | VOE 13955781 | Гайка | 1 |
(955781)
|
|
| 23 | VOE 959079 | Angle ball joint | 1 | ||
| 23 | VOE 959079 | Angle ball joint | 1 | ||
| 25 | VOE 946035 | Lock nut | 1 | ||
| 25 | VOE 946035 | Lock nut | 1 | ||
| 27 | VOE 4460144 | Втулка | 1 | ||
| 27 | VOE 4460144 | Втулка | 1 | ||
| 28 | VOE 13955900 | Шайба | 1 |
(955900)
|
|
| 28 | VOE 13955900 | Шайба | 1 |
(955900)
|
|
| 29 | VOE 14013976 | Spring pin | 1 | ||
| 3 | VOE 14013069 | Sealing washer | 1 | ||
| 3 | VOE 14013069 | Прокладка | 1 | ||
| 30 | VOE 13961962 | Protecting bushing | 1 |
(961962)
|
|
| 30 | VOE 13961962 | Protecting bushing | 1 |
(961962)
|
|
| 31 | VOE 4880999 | Handle ball | 1 | ||
| 31 | VOE 4880999 | Handle ball | 1 | ||
| 4 | VOE 930032 | Testing nipple | 1 | ||
| 4 | VOE 930032 | Testing nipple | 1 | ||
| 5 | VOE 13947621 | Plane gasket | 1 |
(947621)
|
|
| 5 | VOE 13947621 | Plane gasket | 1 |
(947621)
|
|
| 7 | VOE 970945 | Винт шестигранник | 1 |
(970945)
|
|
| 7 | VOE 970945 | Винт шестигранник | 1 |
(970945)
|
|
| 8 | VOE 971071 | Hexagon nut | 1 | ||
| 8 | VOE 971071 | Hexagon nut | 1 |
