Код подсистемы:77919
Наименование:Hydraulic system pipe and hoses
Версия:

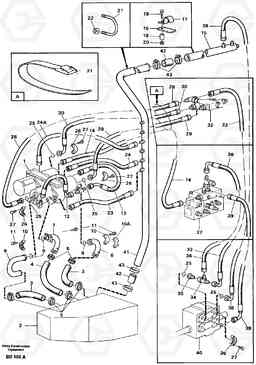

Hydraulic system pipe and hoses A30 VOLVO BM VOLVO BM A30
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 13932579 | Hose assembly | 1 |
L = 1600, SER NO 1377 -
|
||
| VOE 931892 | Hose assembly | 1 |
L = 1300, SER NO 1377 -
|
||
| 10 | VOE 926885 | Flange half | 1 | ||
| 10 | VOE 926885 | Flange half | 1 | ||
| 10A | VOE 11061609 | Flange half | 1 | ||
| 11 | VOE 955561 | Винт шестигранник | 1 | ||
| 11 | VOE 955561 | Винт шестигранник | 1 | ||
| 12 | VOE 932383 | Hose assembly | 1 |
L=800
|
|
| 12 | VOE 932383 | Hose assembly | 1 |
L=800
|
|
| 13 | VOE 13932100 | Hose assembly | 1 |
L=300
|
|
| 13 | VOE 13932100 | Hose assembly | 1 |
L=300
|
|
| 14 | VOE 13932106 | Hose assembly | 1 |
L=2400
|
|
| 14 | VOE 13932106 | Hose assembly | 1 |
L=2400
|
|
| 15 | VOE 11061049 | Трубка | 1 | ||
| 17 | VOE 11061394 | Зажим | 1 | ||
| 18 | VOE 13965196 | Болт | 1 | ||
| 18 | VOE 13965196 | Болт | 1 | ||
| 19 | VOE 4861316 | Spacer ring | 1 | ||
| 19 | VOE 4861316 | Spacer ring | 1 | ||
| 20 | VOE 971099 | Flange lock nut | 1 | ||
| 20 | VOE 971099 | Flange lock nut | 1 | ||
| 21 | VOE 4761310 | Зажим | 1 | ||
| 22 | VOE 13945408 | Гайка | 1 | ||
| 22 | VOE 13945408 | Гайка | 1 | ||
| 23 | VOE 13931338 | Hose assembly | 1 |
L = 1200
|
|
| 24 | VOE 931892 | Hose assembly | 1 |
L = 1300
|
|
| 24A | VOE 13931338 | Hose assembly | 1 |
L = 1200, SER NO - 1376
|
|
| 25 | VOE 13948700 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 25 | VOE 13948700 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 26 | VOE 927947 | Flange half | 1 | ||
| 26 | VOE 927947 | Flange half | 1 | ||
| 27 | VOE 956585 | Allen Hd Screw | 1 | ||
| 28 | VOE 13932576 | Hose assembly | 1 |
L = 2700
|
|
| 29 | VOE 13932580 | Hose assembly | 1 |
L = 1900
|
|
| 3 | VOE 13961199 | Hydraulic hose | 1 |
L = 290 X 2
|
|
| 30 | VOE 13932910 | Hose assembly | 1 |
L = 1700, SER NO - 1376
|
|
| 31 | VOE 11104606 | Retaining strap | 1 | ||
| 31 | VOE 11104606 | Retaining strap | 1 | ||
| 33 | VOE 11062698 | Hydraulic hose | 1 |
L = 1050
|
|
| 34 | VOE 4881535 | Clutch | 1 | ||
| 35 | VOE 11061037 | Nipple | 1 | ||
| 36 | VOE 11062699 | Hydraulic hose | 1 |
L = 400
|
|
| 38 | VOE 13932572 | Hose assembly | 1 |
L = 900
|
|
| 39 | VOE 13932703 | Hose assembly | 1 |
L = 700
|
|
| 39 | VOE 13932703 | Hose assembly | 1 |
L = 700
|
|
| 4 | VOE 13961199 | Hydraulic hose | 1 |
L = 480
|
|
| 41 | VOE 11061045 | Трубка | 1 | ||
| 42 | VOE 11191708 | Шланг | 1 | ||
| 42 | VOE 11191708 | Шланг | 1 | ||
| 43 | VOE 11059299 | Hose clamp | 1 | ||
| 43 | VOE 11059299 | Hose clamp | 1 | ||
| 5 | VOE 4786573 | Hose clamp | 1 | ||
| 5 | VOE 4786573 | Hose clamp | 1 | ||
| 6 | VOE 11063146 | Трубка | 1 | ||
| 7 | VOE 11061366 | Трубка | 1 | ||
| 7 | VOE 11061366 | Трубка | 1 | ||
| 8 | VOE 11061303 | Трубка | 1 | ||
| 9 | VOE 13949239 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 9 | VOE 13949239 | Кольцо уплотнительное (О-кольцо) | 1 |
