Каталог запчастей
-
Volvo Construction Equipment
-
L150/L150C VOLVO BM VOLVO BM L150/L150C SER NO - 2767/- 60708

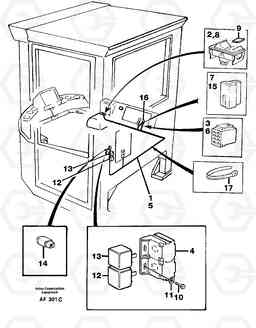

- Cable harness for forward and rear.
Cable harness for forward and rear. погрузчика колесного Volvo Construction Equipment L150/L150C VOLVO BM VOLVO BM L150/L150C SER NO - 2767/- 60708
Cable harness for forward and rear. погрузчика колесного Volvo Construction Equipment L150/L150C VOLVO BM VOLVO BM L150/L150C SER NO - 2767/- 60708 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:62104
Наименование:Cable harness for forward and rear.
Версия:91944, 92770
Cable harness for forward and rear. L150/L150C VOLVO BM VOLVO BM L150/L150C SER NO - 2767/- 60708
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 11997242 | Bulb | 1 | |||
| VOE 4803274 | Диод | 1 | |||
| VOE 4803274 | Диод | 1 | |||
| 1 | VOE 11041721 | 11041721 | 1 | ||
| 10 | VOE 190665 | Винт шестигранник | 1 | ||
| 10 | VOE 190665 | Винт шестигранник | 1 | ||
| 11 | VOE 13940090 | Шайба | 1 |
(940090)
|
|
| 11 | VOE 13940090 | Шайба | 1 |
(940090)
|
|
| 12 | VOE 4786690 | Реле | 1 |
RE20
|
|
| 12 | VOE 4786690 | Реле | 1 |
RE20
|
|
| 13 | VOE 4786690 | Реле | 1 |
RE21
|
|
| 13 | VOE 4786690 | Реле | 1 |
RE21
|
|
| 14 | VOE 4940327 | Диод | 1 | ||
| 14 | VOE 4940327 | Диод | 1 | ||
| 15 | VOE 13958210 | Receptacle housing | 1 |
(958210)
|
|
| 15 | VOE 13958210 | Receptacle housing | 1 |
(958210)
|
|
| 17 | VOE 4881440 | Cable tie | 1 | ||
| 17 | VOE 4881440 | Cable tie | 1 | ||
| 2 | VOE 11039298 | 11039298 | 1 |
SW 108
|
|
| 3 | VOE 4803454 | Receptacle housing | 1 | ||
| 3 | VOE 4803454 | Receptacle housing | 1 | ||
| 4 | VOE 13946556 | Relay socket | 1 | ||
| 4 | VOE 13946556 | Relay socket | 1 | ||
| 5 | VOE 11041992 | 11041992 | 1 | ||
| 6 | VOE 4803454 | Receptacle housing | 1 | ||
| 6 | VOE 4803454 | Receptacle housing | 1 | ||
| 7 | VOE 13958210 | Receptacle housing | 1 | ||
| 7 | VOE 13958210 | Receptacle housing | 1 | ||
| 8 | VOE 11039439 | 11039439 | 1 | ||
| 9 | VOE 4803548 | Lens | 1 |
BL
|
