Каталог запчастей
-
Volvo Construction Equipment
-
A25B A25B
- Battery with assembling details
Battery with assembling details самосвала cочлененного Volvo Construction Equipment A25B A25B
Battery with assembling details самосвала cочлененного Volvo Construction Equipment A25B A25B со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:50865
Наименование:Battery with assembling details
Версия:

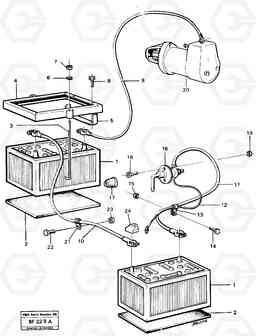

Battery with assembling details A25B A25B
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 8157766 | Knob | 1 | |||
| VOE 8157766 | Knob | 1 | |||
| 1 | VOE 1696588 | Батарея аккумуляторная | 1 | ||
| 10 | VOE 4940936 | Battery cable | 1 | ||
| 11 | VOE 4864992 | Battery cable | 1 | ||
| 12 | VOE 944623 | Ground cable | 1 | ||
| 13 | VOE 952628 | Зажим | 1 | ||
| 13 | VOE 952628 | Зажим | 1 | ||
| 14 | VOE 13946934 | Болт | 1 | ||
| 14 | VOE 13946934 | Болт | 1 | ||
| 15 | VOE 13949278 | Flange lock nut | 1 | ||
| 15 | VOE 13949278 | Flange lock nut | 1 | ||
| 16 | VOE 3987034 | Battery main switch | 1 | ||
| 16 | VOE 3987034 | Battery main switch | 1 | ||
| 17 | VOE 1582293 | Protecting moulding | 1 | ||
| 17 | VOE 1582293 | Protecting moulding | 1 | ||
| 18 | VOE 13946544 | Болт | 1 | ||
| 18 | VOE 13946544 | Screw | 1 | ||
| 19 | VOE 13949278 | Flange lock nut | 1 | ||
| 19 | VOE 13949278 | Flange lock nut | 1 | ||
| 2 | VOE 4713743 | Rubber plate | 1 | ||
| 2 | VOE 4713743 | Rubber plate | 1 | ||
| 21 | VOE 952638 | Зажим | 1 | ||
| 21 | VOE 952638 | Зажим | 1 | ||
| 22 | VOE 13946934 | Болт | 1 | ||
| 22 | VOE 13946934 | Болт | 1 | ||
| 23 | VOE 13949278 | Flange lock nut | 1 | ||
| 23 | VOE 13949278 | Flange lock nut | 1 | ||
| 24 | VOE 14260472 | Terminal casing | 1 | ||
| 24 | VOE 14260472 | Terminal casing | 1 | ||
| 3 | VOE 6648185 | Hook | 1 | ||
| 3 | VOE 6648185 | Hook | 1 | ||
| 4 | VOE 11062340 | Frame | 1 | ||
| 5 | VOE 4864950 | 4864950 | 1 | ||
| 6 | VOE 976945 | Шайба | 1 | ||
| 6 | VOE 976945 | Шайба | 1 | ||
| 7 | VOE 971071 | Hexagon nut | 1 | ||
| 7 | VOE 971071 | Hexagon nut | 1 | ||
| 8 | VOE 13965176 | Screw | 1 | ||
| 8 | VOE 13965176 | Болт | 1 | ||
| 9 | VOE 4940937 | Battery cable | 1 |
