Каталог запчастей
-
Volvo Construction Equipment
-
L180/L180C VOLVO BM VOLVO BM L180/L180C SER NO -2532 / -60469 USA
- Cable harness, CDC-steering.
Cable harness, CDC-steering. погрузчика колесного Volvo Construction Equipment L180/L180C VOLVO BM VOLVO BM L180/L180C SER NO -2532 / -60469 USA
Cable harness, CDC-steering. погрузчика колесного Volvo Construction Equipment L180/L180C VOLVO BM VOLVO BM L180/L180C SER NO -2532 / -60469 USA со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:50346
Наименование:Cable harness, CDC-steering.
Версия:91839, 92646, 92819

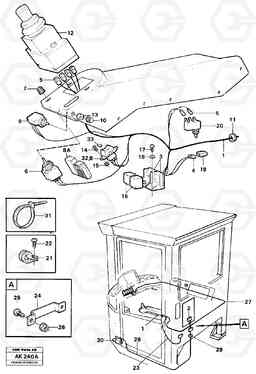

Cable harness, CDC-steering. L180/L180C VOLVO BM VOLVO BM L180/L180C SER NO -2532 / -60469 USA
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 11041955 | 11041955 | 1 | |||
| VOE 972006 | Винт шестигранник (торцевой ключ) | 1 | |||
| VOE 11041034 | 11041034 | 1 | |||
| VOE 11025910 | Cable | 1 | |||
| VOE 972006 | Винт шестигранник (торцевой ключ) | 1 | |||
| VOE 977184 | Изолятор | 1 |
RE 30, RE 31
|
||
| VOE 977184 | Картер (корпус) | 1 |
RE 30, RE 31
|
||
| 1 | VOE 11041720 | 11041720 | 1 | ||
| 10 | VOE 11992216 | Knob | 1 | ||
| 11 | VOE 941264 | Уплотнительная втулка | 1 | ||
| 11 | VOE 941264 | Уплотнительная втулка | 1 | ||
| 12 | VOE 11004080 | Control lever | 1 | ||
| 12 | VOE 11004080 | Control lever | 1 | ||
| 13 | VOE 11003679 | Button | 1 |
PROD
|
|
| 14 | VOE 956045 | Cross recessed screw | 1 | ||
| 14 | VOE 956045 | Cross recessed screw | 1 | ||
| 15 | VOE 955778 | Hexagon nut | 1 | ||
| 15 | VOE 955778 | Hexagon nut | 1 | ||
| 16 | VOE 4786690 | Реле | 1 |
RE30, RE31
|
|
| 16 | VOE 4786690 | Реле | 1 |
RE30, RE31
|
|
| 17 | VOE 944704 | Cross recessed screw | 1 | ||
| 17 | VOE 944704 | Cross recessed screw | 1 | ||
| 18 | VOE 11004663 | Шайба | 1 | ||
| 19 | VOE 4940327 | Диод | 1 | ||
| 19 | VOE 4940327 | Диод | 1 | ||
| 2 | VOE 13968409 | Картер (корпус) | 1 |
ODC, (968409)
|
|
| 20 | VOE 4787427 | Microswitch | 1 |
SE62
|
|
| 20 | VOE 4787427 | Microswitch | 1 |
SE62
|
|
| 21 | VOE 11004125 | Зажим | 1 | ||
| 22 | VOE 944704 | Cross recessed screw | 1 | ||
| 22 | VOE 944704 | Cross recessed screw | 1 | ||
| 23 | VOE 11041722 | 11041722 | 1 | ||
| 24 | VOE 11004125 | Зажим | 1 | ||
| 25 | VOE 13980220 | Болт | 1 | ||
| 25 | VOE 13980220 | Винт шестигранник (торцевой ключ) | 1 | ||
| 26 | VOE 13963103 | Lock nut | 1 |
(963103)
|
|
| 26 | VOE 13963103 | Lock nut | 1 |
(963103)
|
|
| 27 | VOE 11041719 | 11041719 | 1 | ||
| 28 | VOE 11025737 | Cable | 1 | ||
| 29 | VOE 11147868 | Plastic nut | 1 | ||
| 29 | VOE 11147868 | Plastic nut | 1 | ||
| 3 | VOE 13946556 | Relay socket | 1 |
RE 30, RE 31. (946556)
|
|
| 3 | VOE 13946556 | Relay socket | 1 |
RE 30, RE 31. (946556)
|
|
| 31 | VOE 4881440 | Cable tie | 1 | ||
| 31 | VOE 4881440 | Cable tie | 1 | ||
| 32 | VOE 11039439 | 11039439 | 1 |
SW 43
|
|
| 33 | VOE 4803548 | Lens | 1 | ||
| 4 | VOE 13958210 | Receptacle housing | 1 |
DI, (958210)
|
|
| 4 | VOE 13958210 | Receptacle housing | 1 |
DI, (958210)
|
|
| 5 | VOE 13949597 | Изолятор | 1 |
SE 62, (949597)
|
|
| 5 | VOE 13949597 | Protecting sleeve | 1 |
SE 62, (949597)
|
|
| 6 | VOE 11997561 | 11997561 | 1 |
SW 30
|
|
| 7 | VOE 11992216 | Knob | 1 | ||
| 8 | VOE 11039120 | 11039120 | 1 |
SW 43
|
|
| 8A | VOE 13944221 | Картер (корпус) | 1 |
SW 43, (944221)
|
|
| 8A | VOE 13944221 | Картер (корпус) | 1 |
SW 43, (944221)
|
|
| 9 | VOE 11997560 | 11997560 | 1 |
SW 109
|
