L120C VOLVO BM VOLVO BM L120C SER NO - 11318
- Parking brake alarm,
Parking brake alarm, погрузчика колесного Volvo Construction Equipment L120C VOLVO BM VOLVO BM L120C SER NO - 11318
Parking brake alarm, погрузчика колесного Volvo Construction Equipment L120C VOLVO BM VOLVO BM L120C SER NO - 11318 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:27224
Наименование:Parking brake alarm,
Версия:94559

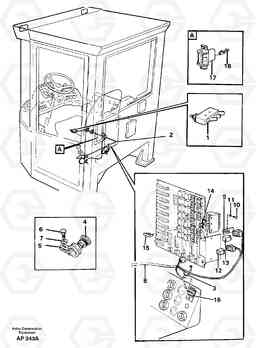

Parking brake alarm, L120C VOLVO BM VOLVO BM L120C SER NO - 11318
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 4881440 | Cable tie | 1 | |||
| VOE 4881440 | Cable tie | 1 | |||
| 1 | VOE 4787427 | Microswitch | 1 | ||
| 1 | VOE 4787427 | Microswitch | 1 | ||
| 10 | VOE 190665 | Винт шестигранник | 1 | ||
| 10 | VOE 190665 | Винт шестигранник | 1 | ||
| 11 | VOE 13940090 | Шайба | 1 | ||
| 11 | VOE 13940090 | Шайба | 1 | ||
| 12 | VOE 4786690 | Реле | 1 |
RE24
|
|
| 12 | VOE 4786690 | Реле | 1 |
RE24
|
|
| 13 | VOE 4803319 | Delay relay | 1 |
RT1
|
|
| 13 | VOE 4803319 | Delay relay | 1 |
RT1
|
|
| 14 | VOE 11041913 | Wire | 1 | ||
| 14 | VOE 11041913 | Wire | 1 | ||
| 15 | VOE 13969160 | Fuse | 1 |
5A FU53
|
|
| 15 | VOE 13969160 | Fuse | 1 |
5A FU53
|
|
| 16 | VOE 9148415 | Terminal block | 1 | ||
| 16 | VOE 9148415 | Terminal block | 1 | ||
| 17 | VOE 13948995 | Pin housing | 1 |
For air susp.drivers seat
|
|
| 17 | VOE 13948995 | Pin housing | 1 |
For air susp.drivers seat
|
|
| 18 | VOE 965824 | Cable terminal | 1 |
For air susp.drivers seat
|
|
| 18 | VOE 965824 | Cable terminal | 1 |
For air susp.drivers seat
|
|
| 2 | VOE 11041829 | 11041829 | 1 |
(Driver's seat)
|
|
| 3 | VOE 4881438 | Cable tie | 1 | ||
| 3 | VOE 4881438 | Cable tie | 1 | ||
| 4 | VOE 828587 | Buzzer | 1 | ||
| 4 | VOE 828587 | Buzzer | 1 | ||
| 5 | VOE 13949997 | Зажим | 1 | ||
| 5 | VOE 13949997 | Зажим | 1 | ||
| 6 | VOE 940142 | Винт шестигранник | 1 | ||
| 6 | VOE 940142 | Винт шестигранник | 1 | ||
| 7 | VOE 13955894 | Шайба | 1 | ||
| 7 | VOE 13955894 | Шайба | 1 | ||
| 8 | VOE 11041073 | 11041073 | 1 | ||
| 9 | VOE 11014573 | Attaching Plate | 1 |
