Каталог запчастей
-
Volvo Construction Equipment
-
L90C
- Operator seat with fitting parts
Operator seat with fitting parts погрузчика колесного Volvo Construction Equipment L90C
Operator seat with fitting parts погрузчика колесного Volvo Construction Equipment L90C со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:99711
Наименование:Operator seat with fitting parts
Версия:33275

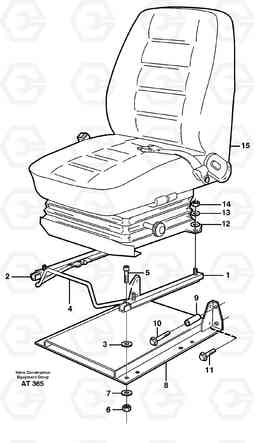

Operator seat with fitting parts L90C
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | VOE 11104093 | Slide rail | 1 | ||
| 10 | VOE 13947790 | Болт | 1 | ||
| 10 | VOE 13947790 | Screw | 1 | ||
| 11 | VOE 946329 | Flange screw | 1 | ||
| 11 | VOE 946329 | Flange screw | 1 | ||
| 12 | VOE 13960143 | Шайба | 1 | ||
| 12 | VOE 13960143 | Шайба | 1 | ||
| 13 | VOE 976944 | Шайба | 1 | ||
| 13 | VOE 976944 | Шайба | 1 | ||
| 14 | VOE 13945408 | Гайка | 1 | ||
| 14 | VOE 13945408 | Гайка | 1 | ||
| 15 | VOE 11104212 | Seat | 1 |
CAB - 36023
|
|
| 15 | VOE 11104212 | Seat | 1 |
CAB - 36023
|
|
| 2 | VOE 11104092 | Slide rail | 1 | ||
| 3 | VOE 976944 | Шайба | 1 | ||
| 3 | VOE 976944 | Шайба | 1 | ||
| 4 | VOE 11006044 | Handle | 1 | ||
| 5 | VOE 4870448 | Болт | 1 | ||
| 5 | VOE 4870448 | Screw | 1 | ||
| 6 | VOE 946036 | Lock nut | 1 | ||
| 6 | VOE 946036 | Lock nut | 1 | ||
| 7 | VOE 13955894 | Шайба | 1 | ||
| 7 | VOE 13955894 | Шайба | 1 | ||
| 8 | VOE 11007410 | Seat Bracket | 1 | ||
| 9 | VOE 930457 | Spacer ring | 1 | ||
| 9 | VOE 930457 | Spacer ring | 1 |
