Каталог запчастей
-
Volvo Construction Equipment
-
L50C S/N 10967-, OPEN ROPS S/N 35001-

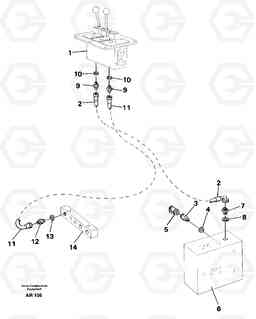

- Servo hydraulic: Feed line and return line
Servo hydraulic: Feed line and return line погрузчика колесного Volvo Construction Equipment L50C S/N 10967-, OPEN ROPS S/N 35001-
Servo hydraulic: Feed line and return line погрузчика колесного Volvo Construction Equipment L50C S/N 10967-, OPEN ROPS S/N 35001- со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:25586
Наименование:Servo hydraulic: Feed line and return line
Версия:
Servo hydraulic: Feed line and return line L50C S/N 10967-, OPEN ROPS S/N 35001-
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 4881458 | Marking Sleeve | 1 |
BR
|
||
| VOE 4881458 | Marking Sleeve | 1 |
BR
|
||
| VOE 941754 | Nipple | 1 | |||
| VOE 941754 | Nipple | 1 | |||
| VOE 13945653 | Plane Gasket | 1 | |||
| VOE 13945653 | Plane Gasket | 1 | |||
| VOE 4881456 | Marking Sleeve | 1 |
OR
|
||
| VOE 4881456 | Marking Sleeve | 1 |
OR
|
||
| VOE 4881451 | Marking Sleeve | 1 |
YELL
|
||
| VOE 4881451 | Marking Sleeve | 1 |
YELL
|
||
| 10 | VOE 14013067 | Sealing washer | 1 | ||
| 10 | VOE 14013067 | Sealing washer | 1 | ||
| 11 | VOE 13933260 | Hose assembly | 1 |
(T)
|
|
| 11 | VOE 13933260 | Hose assembly | 1 |
(T)
|
|
| 12 | VOE 13944524 | Nipple | 1 | ||
| 12 | VOE 13944524 | Nipple | 1 | ||
| 13 | VOE 14013067 | Sealing washer | 1 | ||
| 13 | VOE 14013067 | Sealing washer | 1 | ||
| 2 | VOE 13933218 | Hose assembly | 1 |
(P)
|
|
| 2 | VOE 13933218 | Hose assembly | 1 |
(P)
|
|
| 3 | VOE 11090756 | Reduction nipple | 1 | ||
| 3 | VOE 11090756 | Reduction nipple | 1 | ||
| 4 | VOE 948883 | Plane Gasket | 1 | ||
| 4 | VOE 948883 | Plane Gasket | 1 | ||
| 5 | VOE 936444 | Testing Nipple | 1 | ||
| 5 | VOE 936444 | Testing Nipple | 1 | ||
| 7 | VOE 13946602 | Nipple | 1 | ||
| 7 | VOE 13946602 | Nipple | 1 | ||
| 8 | VOE 13945653 | Plane Gasket | 1 | ||
| 8 | VOE 13945653 | Plane Gasket | 1 | ||
| 9 | VOE 13944524 | Nipple | 1 | ||
| 9 | VOE 13944524 | Nipple | 1 |
