Каталог запчастей
-
Volvo Construction Equipment
-
L50C S/N 10967-, OPEN ROPS S/N 35001-
- Servo hydraulic: Control lines Tilting
Servo hydraulic: Control lines Tilting погрузчика колесного Volvo Construction Equipment L50C S/N 10967-, OPEN ROPS S/N 35001-
Servo hydraulic: Control lines Tilting погрузчика колесного Volvo Construction Equipment L50C S/N 10967-, OPEN ROPS S/N 35001- со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:25990
Наименование:Servo hydraulic: Control lines Tilting
Версия:

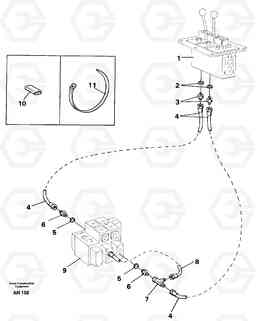

Servo hydraulic: Control lines Tilting L50C S/N 10967-, OPEN ROPS S/N 35001-
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 13945653 | Plane Gasket | 1 | |||
| VOE 13945653 | Plane Gasket | 1 | |||
| VOE 941754 | Nipple | 1 | |||
| VOE 941754 | Nipple | 1 | |||
| VOE 13945653 | Plane Gasket | 1 | |||
| VOE 13945653 | Plane Gasket | 1 | |||
| VOE 11014127 | Marking Sleeve | 1 |
GREY
|
||
| VOE 11014127 | Marking Sleeve | 1 |
GREY
|
||
| VOE 4881452 | Marking Sleeve | 1 |
WHITE
|
||
| VOE 4881452 | Marking Sleeve | 1 |
WHITE
|
||
| VOE 941754 | Nipple | 1 | |||
| VOE 941754 | Nipple | 1 | |||
| 10 | VOE 4881459 | Marking Sleeve | 1 |
BLUE
|
|
| 10 | VOE 4881459 | Marking Sleeve | 1 |
BLUE
|
|
| 11 | VOE 4881440 | Strip Clamp | 1 | ||
| 11 | VOE 4881440 | Strip Clamp | 1 | ||
| 2 | VOE 14013067 | Sealing washer | 1 | ||
| 2 | VOE 14013067 | Sealing washer | 1 | ||
| 3 | VOE 13944524 | Nipple | 1 | ||
| 3 | VOE 13944524 | Nipple | 1 | ||
| 4 | VOE 13933221 | Hose assembly | 1 | ||
| 4 | VOE 13933221 | Hose assembly | 1 | ||
| 5 | VOE 14013067 | Sealing washer | 1 | ||
| 5 | VOE 14013067 | Sealing washer | 1 | ||
| 6 | VOE 13944524 | Nipple | 1 | ||
| 6 | VOE 13944524 | Nipple | 1 | ||
| 7 | VOE 13944262 | Nipple | 1 | ||
| 7 | VOE 13944262 | Nipple | 1 | ||
| 8 | VOE 13933314 | Hose assembly | 1 | ||
| 8 | VOE 13933314 | Hose assembly | 1 |
