Каталог запчастей
-
Volvo Construction Equipment
-
A25C
- Operator's seat, heated, air suspensioned.
Operator's seat, heated, air suspensioned. самосвала cочлененного Volvo Construction Equipment A25C
Operator's seat, heated, air suspensioned. самосвала cочлененного Volvo Construction Equipment A25C со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:27571
Наименование:Operator's seat, heated, air suspensioned.
Версия:92174, 93222

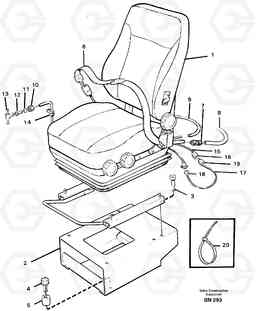

Operator's seat, heated, air suspensioned. A25C
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 10 | VOE 954356 | Fitting nut | 1 | ||
| 10 | VOE 954356 | Fitting nut | 1 | ||
| 11 | VOE 954364 | Ferrule | 1 | ||
| 11 | VOE 954364 | Ferrule | 1 | ||
| 12 | VOE 944717 | Втулка (распорная) | 1 | ||
| 12 | VOE 944717 | Втулка (распорная) | 1 | ||
| 13 | VOE 946940 | Nipple | 1 |
BEFINTLIG/EXISTING
|
|
| 13 | VOE 946940 | Nipple | 1 |
BEFINTLIG/EXISTING
|
|
| 14 | VOE 952628 | Зажим | 1 | ||
| 14 | VOE 952628 | Зажим | 1 | ||
| 15 | VOE 4864077 | 4864077 | 1 | ||
| 16 | VOE 13958210 | Receptacle housing | 1 | ||
| 16 | VOE 13958210 | Receptacle housing | 1 | ||
| 17 | VOE 11061773 | 11061773 | 1 | ||
| 18 | VOE 13948995 | Pin housing | 1 | ||
| 18 | VOE 13948995 | Pin housing | 1 | ||
| 19 | VOE 958209 | Изолятор | 1 | ||
| 19 | VOE 958209 | Картер (корпус) | 1 | ||
| 2 | VOE 11116677 | Seat Bracket | 1 | ||
| 20 | VOE 4821292 | Cable tie | 1 | ||
| 20 | VOE 4821292 | Cable tie | 1 | ||
| 3 | VOE 13967630 | Allen Hd Screw | 1 | ||
| 4 | VOE 13965185 | Screw | 1 | ||
| 4 | VOE 13965185 | Болт | 1 | ||
| 5 | VOE 4943026 | Spacer sleeve | 1 | ||
| 5 | VOE 4943026 | Spacer sleeve | 1 | ||
| 7 | VOE 6626875 | Joint nipple | 1 | ||
| 8 | VOE 13945460 | Plastic pipe | 1 |
L= 1800
|
|
| 8 | VOE 13945460 | Plastic pipe | 1 |
L= 1800
|
|
| 9 | VOE 13945460 | Plastic pipe | 1 |
L= 1700
|
|
| 9 | VOE 13945460 | Plastic pipe | 1 |
L= 1700
|
