EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368
- Pedal valve with connections and hoses
Pedal valve with connections and hoses экскаватора Volvo Construction Equipment EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368
Pedal valve with connections and hoses экскаватора Volvo Construction Equipment EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:38164
Наименование:Pedal valve with connections and hoses
Версия:

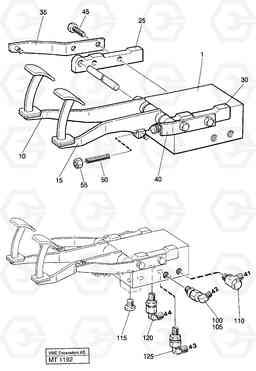

Pedal valve with connections and hoses EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 14054202 | Клапан | 1 | |||
| VOE 14054202 | Клапан | 1 | |||
| 10 | VOE 14243543 | Pedal | 1 | ||
| 100 | VOE 957030 | Nipple | 1 | ||
| 100 | VOE 957030 | Nipple | 1 | ||
| 105 | VOE 14012393 | 14012393 | 1 | ||
| 110 | VOE 14012474 | Banjo fitting | 1 | ||
| 115 | VOE 14023407 | Пробка (заглушка) | 1 | ||
| 115 | VOE 14023407 | Пробка (заглушка) | 1 | ||
| 120 | VOE 14012413 | 14012413 | 1 | ||
| 125 | VOE 14012391 | 14012391 | 1 | ||
| 15 | VOE 14243546 | Pedal | 1 | ||
| 20 | VOE 14025131 | цилиндр контактный | 1 | ||
| 25 | VOE 14243536 | Pedal attachment | 1 |
RH
|
|
| 30 | VOE 14243537 | Pedal attachment | 1 |
LH
|
|
| 35 | VOE 14243538 | Spring anchorage | 1 |
RH
|
|
| 40 | VOE 14243539 | Spring anchorage | 1 |
LH
|
|
| 45 | VOE 940142 | Винт шестигранник | 1 | ||
| 45 | VOE 940142 | Винт шестигранник | 1 | ||
| 50 | VOE 14212750 | Pressure Screw | 1 | ||
| 55 | VOE 955782 | Hexagon nut | 1 | ||
| 55 | VOE 955782 | Hexagon nut | 1 |
