Каталог запчастей
-
Volvo Construction Equipment
-
EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368
- Slope/grab bucket equipm.in base machine
Slope/grab bucket equipm.in base machine экскаватора Volvo Construction Equipment EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368
Slope/grab bucket equipm.in base machine экскаватора Volvo Construction Equipment EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:45162
Наименование:Slope/grab bucket equipm.in base machine
Версия:14246350

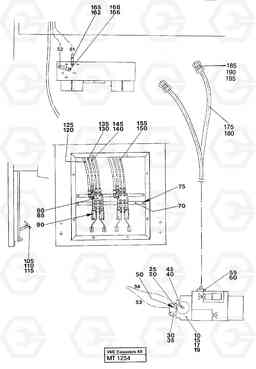

Slope/grab bucket equipm.in base machine EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 10 | VOE 14244487 | Directional Valve | 1 | ||
| 105 | VOE 14243548 | Pedal plate | 1 | ||
| 110 | VOE 14025147 | Pedal Rubber | 1 | ||
| 115 | VOE 14213032 | Болт | 1 | ||
| 115 | VOE 14213032 | Болт | 1 | ||
| 120 | VOE 14245240 | Hydraulic hose | 1 | ||
| 120 | VOE 14245240 | Hydraulic hose | 1 | ||
| 125 | VOE 14213152 | Marking strip | 1 | ||
| 130 | VOE 14245230 | Hydraulic hose | 1 | ||
| 135 | VOE 14213151 | Marking strip | 1 | ||
| 140 | VOE 14245617 | Hydraulic hose | 1 | ||
| 145 | VOE 14213154 | Marking strip | 1 | ||
| 15 | VOE 13960172 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 15 | VOE 13960172 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 150 | VOE 14245617 | Hydraulic hose | 1 | ||
| 155 | VOE 14213153 | Marking strip | 1 | ||
| 162 | VOE 14012383 | 14012383 | 1 | ||
| 165 | VOE 14012391 | 14012391 | 1 | ||
| 166 | VOE 14052740 | 14052740 | 1 | ||
| 168 | VOE 14012393 | 14012393 | 1 | ||
| 17 | VOE 14274040 | Вставка | 1 | ||
| 17 | VOE 14274040 | Вставка | 1 | ||
| 175 | VOE 14245622 | Hydraulic hose | 1 | ||
| 175 | VOE 14245622 | Hydraulic hose | 1 | ||
| 180 | VOE 4881440 | Cable tie | 1 | ||
| 180 | VOE 4881440 | Cable tie | 1 | ||
| 185 | VOE 14012404 | 14012404 | 1 | ||
| 185 | VOE 14012404 | Фиттинг | 1 | ||
| 19 | VOE 14021159 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 19 | VOE 14021159 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 190 | VOE 13964090 | Closure | 1 | ||
| 190 | VOE 13964090 | Closure | 1 | ||
| 195 | VOE 14012452 | Гайка | 1 | ||
| 195 | VOE 14012452 | Гайка | 1 | ||
| 20 | VOE 14236021 | Pressure limiting valve | 1 |
35 MPA
|
|
| 20 | VOE 14236021 | Pressure limiting valve | 1 |
35 MPA
|
|
| 25 | VOE 13941747 | Болт | 1 | ||
| 25 | VOE 13941747 | Болт | 1 | ||
| 30 | VOE 14244467 | Lock Fitting | 1 | ||
| 35 | VOE 13970951 | Винт шестигранник | 1 | ||
| 35 | VOE 13970951 | Винт шестигранник | 1 | ||
| 40 | VOE 14012413 | 14012413 | 1 | ||
| 45 | VOE 14012391 | 14012391 | 1 | ||
| 50 | VOE 14012413 | 14012413 | 1 | ||
| 55 | VOE 14012517 | Rdc Bushing | 1 | ||
| 60 | VOE 14012423 | 14012423 | 1 | ||
| 70 | VOE 14243534 | Moulding | 1 | ||
| 75 | VOE 970945 | Винт шестигранник | 1 | ||
| 75 | VOE 970945 | Винт шестигранник | 1 | ||
| 80 | VOE 14244445 | Клапан | 1 | ||
| 85 | VOE 959208 | Allen Hd Screw | 1 | ||
| 90 | VOE 14243542 | Пружина натяжная | 1 |
