Каталог запчастей
-
Volvo Construction Equipment
-
EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368
- Cable bunch, Side panel, Rh
Cable bunch, Side panel, Rh экскаватора Volvo Construction Equipment EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368
Cable bunch, Side panel, Rh экскаватора Volvo Construction Equipment EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:49862
Наименование:Cable bunch, Side panel, Rh
Версия:

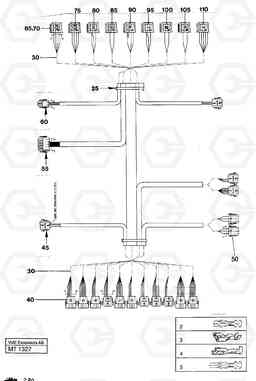

Cable bunch, Side panel, Rh EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 14252881 | 14252881 | 1 | |||
| 100 | VOE 14245294 | Decal | 1 | ||
| 105 | VOE 14245288 | Decal | 1 | ||
| 110 | VOE 14248819 | Decal | 1 | ||
| 2 | VOE 965822 | Cable terminal | 1 | ||
| 2 | VOE 965822 | Cable terminal | 1 | ||
| 25 | VOE 14016673 | Strip clamp | 1 | ||
| 25 | VOE 14016673 | Strip clamp | 1 | ||
| 3 | VOE 949211 | Cable terminal | 1 | ||
| 3 | VOE 949211 | Cable terminal | 1 | ||
| 30 | VOE 14016673 | Strip clamp | 1 | ||
| 30 | VOE 14016673 | Strip clamp | 1 | ||
| 4 | VOE 949489 | Cable terminal | 1 | ||
| 4 | VOE 949489 | Cable terminal | 1 | ||
| 40 | VOE 948295 | Insulator | 1 | ||
| 40 | VOE 948295 | Изолятор | 1 | ||
| 45 | VOE 948294 | Изолятор | 1 | ||
| 45 | VOE 948294 | Изолятор | 1 | ||
| 5 | VOE 965824 | Cable terminal | 1 | ||
| 5 | VOE 965824 | Cable terminal | 1 | ||
| 50 | VOE 948296 | Картер (корпус) | 1 | ||
| 50 | VOE 948296 | Изолятор | 1 | ||
| 55 | VOE 14214927 | Plug Housing | 1 | ||
| 60 | VOE 14214990 | Plug Housing | 1 | ||
| 65 | VOE 4803454 | Receptacle housing | 1 | ||
| 65 | VOE 4803454 | Receptacle housing | 1 | ||
| 70 | VOE 14245293 | Decal | 1 | ||
| 75 | VOE 14245285 | Decal | 1 | ||
| 80 | VOE 14245278 | Decal | 1 | ||
| 85 | VOE 14245282 | Decal | 1 | ||
| 90 | VOE 14245281 | Decal | 1 | ||
| 95 | VOE 14245283 | Decal | 1 |
