Каталог запчастей
-
Volvo Construction Equipment
-
EW230 ?KERMAN ?KERMAN EW230 SER NO - 1447
- Pedal valve, travel brake with connections
Pedal valve, travel brake with connections экскаватора Volvo Construction Equipment EW230 ?KERMAN ?KERMAN EW230 SER NO - 1447
Pedal valve, travel brake with connections экскаватора Volvo Construction Equipment EW230 ?KERMAN ?KERMAN EW230 SER NO - 1447 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:51282
Наименование:Pedal valve, travel brake with connections
Версия:

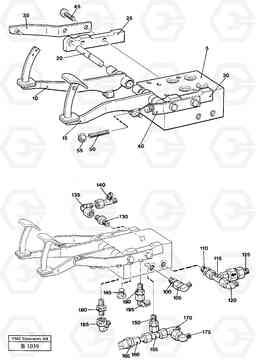

Pedal valve, travel brake with connections EW230 ?KERMAN ?KERMAN EW230 SER NO - 1447
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 10 | VOE 14243543 | Pedal | 1 | ||
| 100 | VOE 957030 | Nipple | 1 | ||
| 100 | VOE 957030 | Nipple | 1 | ||
| 105 | VOE 14012393 | 14012393 | 1 | ||
| 110 | VOE 14023611 | 14023611 | 1 | ||
| 115 | VOE 14012388 | 14012388 | 1 | ||
| 120 | VOE 14012393 | 14012393 | 1 | ||
| 125 | VOE 14100463 | Non-return valve | 1 | ||
| 130 | VOE 14012413 | 14012413 | 1 | ||
| 135 | VOE 14012383 | 14012383 | 1 | ||
| 140 | VOE 14012391 | 14012391 | 1 | ||
| 145 | VOE 14023407 | Пробка (заглушка) | 1 | ||
| 145 | VOE 14023407 | Пробка (заглушка) | 1 | ||
| 15 | VOE 14243546 | Pedal | 1 | ||
| 150 | VOE 14023611 | 14023611 | 1 | ||
| 155 | VOE 14052740 | 14052740 | 1 | ||
| 160 | VOE 14049092 | 14049092 | 1 | ||
| 165 | VOE 14344855 | Pressure monitor | 1 | ||
| 170 | VOE 14025146 | Челночный клапан | 1 | ||
| 175 | VOE 14012393 | 14012393 | 1 | ||
| 180 | VOE 14012413 | 14012413 | 1 | ||
| 185 | VOE 14012391 | 14012391 | 1 | ||
| 190 | VOE 14012413 | 14012413 | 1 | ||
| 195 | VOE 14012391 | 14012391 | 1 | ||
| 20 | VOE 14025131 | цилиндр контактный | 1 | ||
| 25 | VOE 14243536 | Pedal attachment | 1 | ||
| 30 | VOE 14243537 | Pedal attachment | 1 | ||
| 35 | VOE 14243538 | Spring anchorage | 1 | ||
| 40 | VOE 14243539 | Spring anchorage | 1 | ||
| 45 | VOE 940142 | Винт шестигранник | 1 | ||
| 45 | VOE 940142 | Винт шестигранник | 1 | ||
| 5 | VOE 14254372 | Клапан | 1 | ||
| 5 | VOE 14254372 | Клапан | 1 | ||
| 50 | VOE 14212750 | Pressure Screw | 1 | ||
| 55 | VOE 955782 | Hexagon nut | 1 | ||
| 55 | VOE 955782 | Hexagon nut | 1 |
