Каталог запчастей
-
Volvo Construction Equipment
-
EW230 ?KERMAN ?KERMAN EW230 SER NO - 1447
- Centre passage incl. connections
Centre passage incl. connections экскаватора Volvo Construction Equipment EW230 ?KERMAN ?KERMAN EW230 SER NO - 1447
Centre passage incl. connections экскаватора Volvo Construction Equipment EW230 ?KERMAN ?KERMAN EW230 SER NO - 1447 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:55857
Наименование:Centre passage incl. connections
Версия:

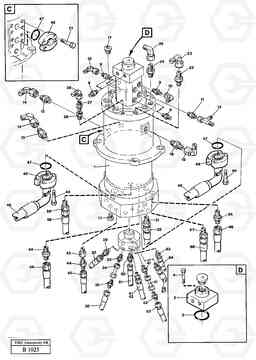

Centre passage incl. connections EW230 ?KERMAN ?KERMAN EW230 SER NO - 1447
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 14054086 | Valve housing | 1 | |||
| VOE 14054087 | Slide | 1 | |||
| VOE 14023410 | Tube Plug | 1 | |||
| 1 | VOE 14244599 | Center Passage | 1 | ||
| 10 | VOE 14012391 | 14012391 | 1 | ||
| 11 | VOE 14012413 | 14012413 | 1 | ||
| 12 | VOE 14012383 | 14012383 | 1 | ||
| 13 | VOE 14012423 | 14012423 | 1 | ||
| 14 | VOE 14012395 | 14012395 | 1 | ||
| 17 | VOE 14023409 | Пробка (заглушка) | 1 | ||
| 17 | VOE 14023409 | Пробка (заглушка) | 1 | ||
| 18 | VOE 14012423 | 14012423 | 1 | ||
| 19 | VOE 14012395 | 14012395 | 1 | ||
| 2 | VOE 14054088 | Клапан | 1 | ||
| 20 | VOE 14048189 | Flange half | 1 | ||
| 20 | VOE 14048189 | Flange half | 1 | ||
| 21 | VOE 13970972 | Винт шестигранник | 1 | ||
| 21 | VOE 13970972 | Винт шестигранник | 1 | ||
| 22 | VOE 14012423 | 14012423 | 1 | ||
| 23 | VOE 14012395 | 14012395 | 1 | ||
| 24 | VOE 14012423 | 14012423 | 1 | ||
| 25 | VOE 14012395 | 14012395 | 1 | ||
| 26 | VOE 14012514 | Rdc Bushing | 1 | ||
| 27 | VOE 957030 | Nipple | 1 | ||
| 27 | VOE 957030 | Nipple | 1 | ||
| 28 | VOE 14012393 | 14012393 | 1 | ||
| 29 | VOE 14012413 | 14012413 | 1 | ||
| 3 | VOE 925092 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 3 | VOE 925092 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 30 | VOE 14054605 | Hydraulic hose | 1 | ||
| 31 | VOE 14012423 | 14012423 | 1 | ||
| 32 | VOE 14056266 | Hydraulic hose | 1 | ||
| 33 | VOE 14012413 | 14012413 | 1 | ||
| 34 | VOE 14238568 | Tube Assembly | 1 | ||
| 35 | VOE 14012402 | Фиттинг | 1 | ||
| 35 | VOE 14012402 | 14012402 | 1 | ||
| 36 | VOE 14054605 | Hydraulic hose | 1 | ||
| 4 | VOE 14023313 | Болт | 1 | ||
| 41 | VOE 14012413 | 14012413 | 1 | ||
| 42 | VOE 14237072 | Hydraulic hose | 1 | ||
| 43 | VOE 14012514 | Rdc Bushing | 1 | ||
| 44 | VOE 957030 | Nipple | 1 | ||
| 44 | VOE 957030 | Nipple | 1 | ||
| 45 | VOE 14047305 | Hydraulic hose | 1 | ||
| 46 | VOE 14250893 | Hydraulic hose | 1 | ||
| 46 | VOE 14250893 | Hydraulic hose | 1 | ||
| 47 | VOE 13948700 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 47 | VOE 13948700 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 48 | VOE 14048189 | Flange half | 1 | ||
| 48 | VOE 14048189 | Flange half | 1 | ||
| 49 | VOE 959257 | Allen Hd Screw | 1 | ||
| 51 | VOE 14238568 | Tube Assembly | 1 | ||
| 52 | VOE 14012402 | Фиттинг | 1 | ||
| 52 | VOE 14012402 | 14012402 | 1 | ||
| 53 | VOE 14237072 | Hydraulic hose | 1 | ||
| 54 | VOE 14012423 | 14012423 | 1 | ||
| 55 | VOE 14056262 | Hydraulic hose | 1 | ||
| 56 | VOE 14012413 | 14012413 | 1 | ||
| 57 | VOE 14231551 | Hydraulic hose | 1 | ||
| 58 | VOE 14012423 | 14012423 | 1 | ||
| 59 | VOE 14056260 | Hydraulic hose | 1 | ||
| 60 | VOE 14012413 | 14012413 | 1 | ||
| 61 | VOE 14054605 | Hydraulic hose | 1 | ||
| 63 | VOE 14012413 | 14012413 | 1 | ||
| 64 | VOE 14054605 | Hydraulic hose | 1 | ||
| 65 | VOE 14012423 | 14012423 | 1 | ||
| 66 | VOE 14056262 | Hydraulic hose | 1 | ||
| 67 | VOE 14012423 | 14012423 | 1 | ||
| 68 | VOE 14056262 | Hydraulic hose | 1 | ||
| 9 | VOE 14012413 | 14012413 | 1 |
